Bow-type Drop fiber optic cable

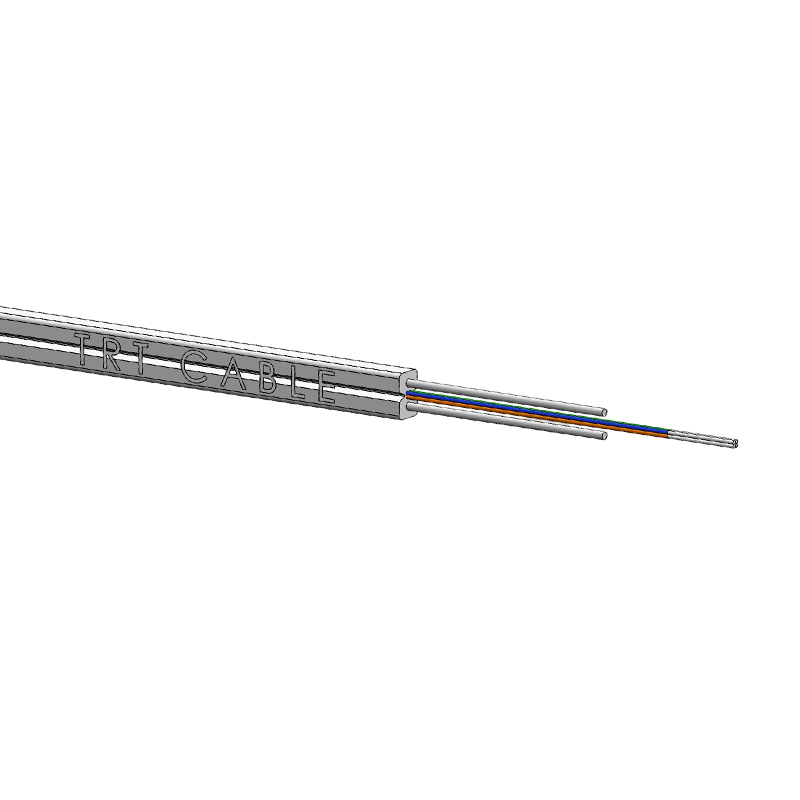

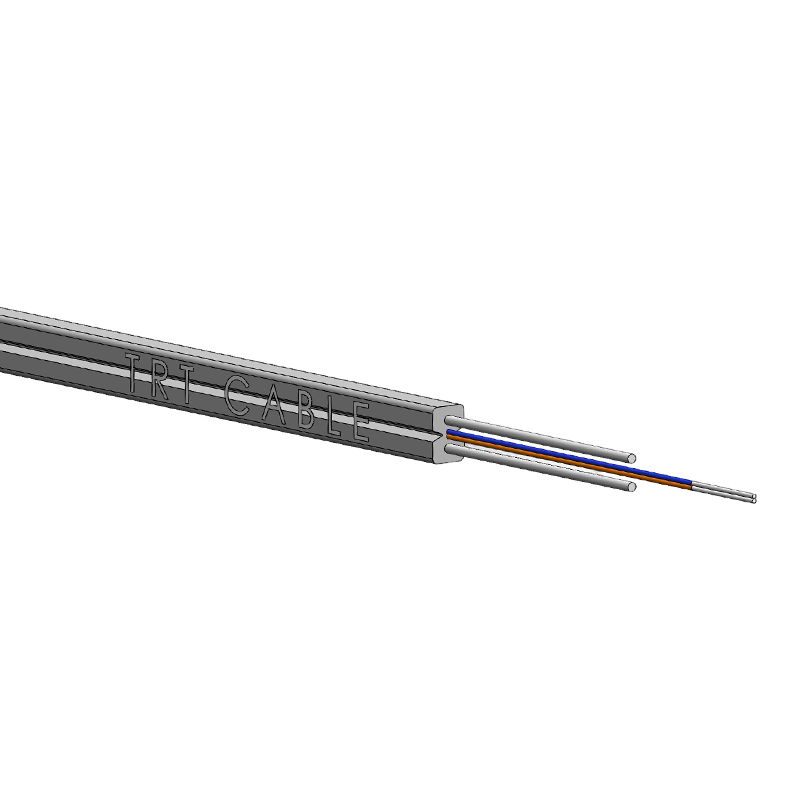

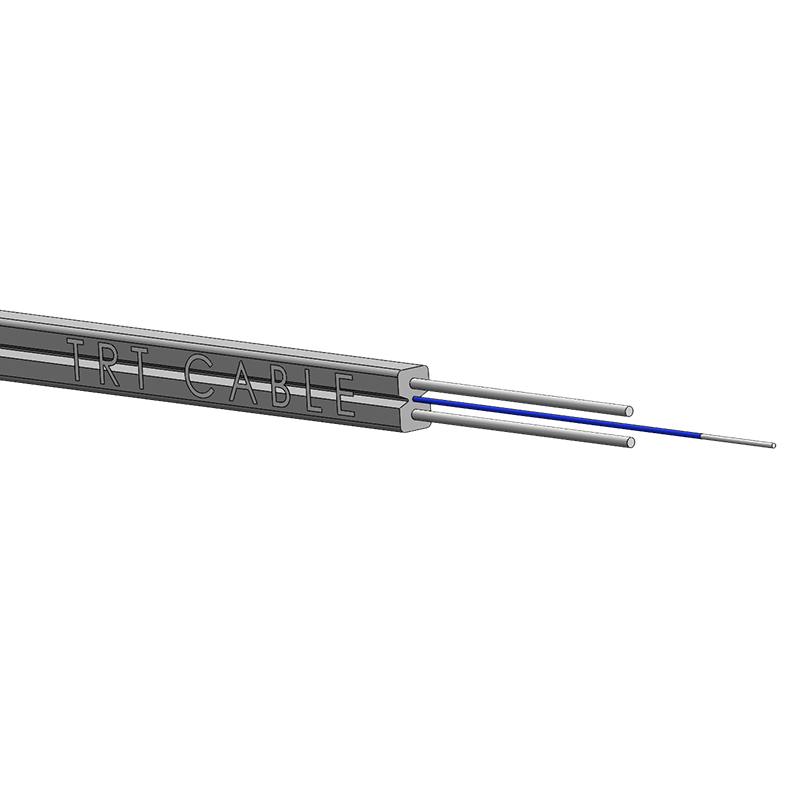

The optical fibre unit is positioned in the centre , Two parallet Fibre Reinforced plastics(FRP) are placed at the two sides. then cable completed with a black or color LSZH material jacket.
Share:
Characteristics
● Special low-bend sensitivity fiber provides high bandwidth and excellent communication transmission properties.
● Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
● Simple structure, lightweight, and high practicability.
● Novel flute design, easily strip, and splice, simplifies installation and maintenance.
● Low smoke, zero halogen, and flame retardant sheath.
Dimensions
|
Standard Reel Length: 2000m; Other lengths available on request. |
Dimensions
|
Fiber Count |
Cable Size (mm) |
Cable Weight (kg/km) |
Tensile Strength Long/Short term N |
Crush Resistence Long/Short term N/100mm |
Bending Radius Dynamic/Static mm |
|
1 |
(2.0±0.1)X(3.0±0.1) |
8 |
40/80 |
500/1000 |
15/30 |
|
2 |
(2.0±0.1)X(3.0±0.1) |
8.5 |
40/80 |
500/1000 |
15/30 |
|
1 |
(2.0±0.1)X(3.8±0.1) |
9 |
40/80 |
500/1000 |
15/30 |
|
4 |
(2.0±0.2)X(4.0±0.2) |
10 |
40/80 |
500/1000 |
15/30 |
Storage/Operating Temperature: -20℃~60℃.
Dimensions
|
Fiber Type |
Attenuation |
OFL Bandwidth |
Effective mode bandwidth @850nm |
Ethernet link length |
Minimum bending radius |
||||
|
@850 nm |
@1300 nm |
@1310 nm |
@1550 nm |
@850 nm |
@1300 nm |
||||
|
G.657A1 |
-- |
-- |
≤0.36dB/km |
≤0.22dB/km |
-- |
-- |
-- |
-- |
10mm |
|
G.657A2 |
-- |
-- |
≤0.36dB/km |
≤0.22dB/km |
-- |
-- |
-- |
-- |
7.5mm |
|
OM3 |
≤3.0dB/km |
≤1.0dB/km |
-- |
≥1500MHz·km |
≥500MHz·km |
≥2000MHZ.km |
≤300m |
30mm |
|
|
OM4 |
≤3.0dB/km |
≤1.0dB/km |
-- |
≥3500MHz·km |
≥500MHz·km |
≥4700MHZ.km |
≤550m |
30mm |
|
