How does ADSS optical cable break through environmental limits?

The communication system of high-voltage transmission lines needs to face three major environmental threats:

High humidity: The air humidity in mountainous and coastal areas is >80% all year round, and water molecule penetration causes optical fiber microbending loss;

Strong ultraviolet rays: The annual radiation in plateau and desert areas is >5000 MJ/m², which accelerates the aging of polymer materials;

Extreme temperature difference: When the temperature difference between day and night exceeds 50℃, thermal expansion and contraction cause sheath cracking.

Traditional metal optical cables are prone to stress concentration under extreme temperature differences due to the difference in thermal expansion coefficients between metal conductors and sheath materials, while ADSS optical cables fundamentally avoid this problem through non-metallic composite technology.

Cooperative design principle of water barrier layer and outer sheath

1. Water barrier layer: a protective barrier at the microscopic molecular level

Material selection: The water barrier layer uses a high-density polyethylene (HDPE) or polypropylene (PP) substrate, with super absorbent resin (SAP) or water-blocking yarn added. SAP particles swell to 300 times their original volume when exposed to water, forming a gel-like barrier to block the longitudinal penetration of water.
Structural design: The thickness of the water-blocking layer is ≥0.5mm, and a "honeycomb" buffer layer is set between the fiber bundle to ensure that the water is quickly absorbed when it diffuses radially and avoids contact with the fiber coating.
Synergy mechanism: The dense structure of the outer sheath and the expansion characteristics of the water-blocking layer form a "double water-locking" effect. For example, when the outer sheath has microcracks due to mechanical damage, the water-blocking layer can temporarily replace its waterproof function to buy time for emergency repairs.

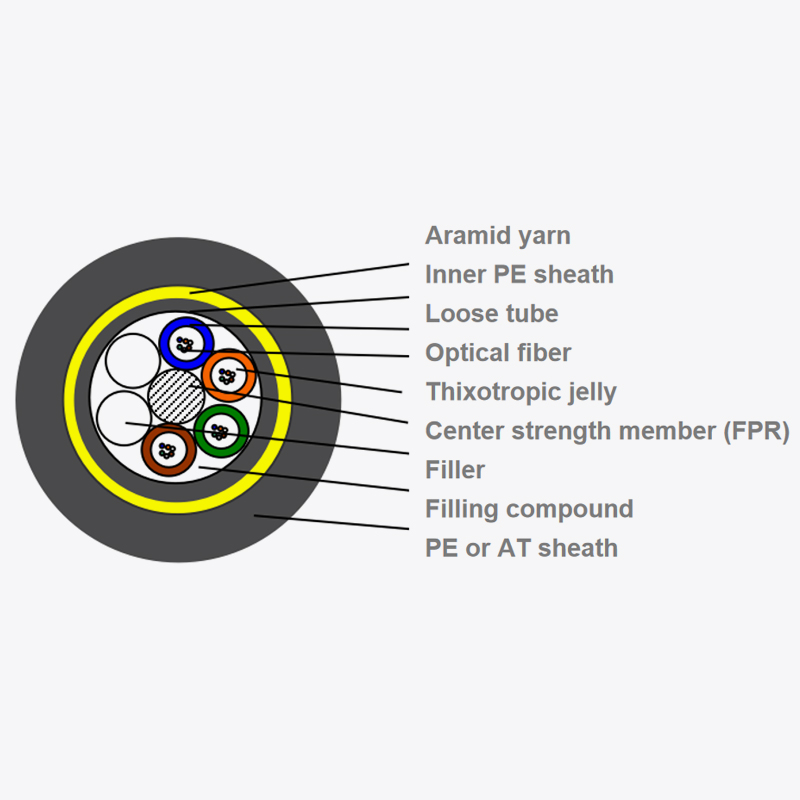

2. Outer sheath: Guardian of macroscopic mechanical properties
Material innovation:
Electric tracking polyethylene (AT/PE): Alumina (Al₂O₃) nanoparticles are introduced through blending technology to improve the anti-electric tracking performance. Its surface resistivity is greater than 10¹⁴Ω·cm, which effectively suppresses corona discharge.
Polyolefin elastomer (POE): The dynamic vulcanization process is used to form an interpenetrating network structure between polyethylene and ethylene-propylene rubber (EPR), with an elongation at break greater than 400%, and flexibility is maintained at a low temperature of -40°C.
Structural optimization: The outer sheath adopts the "double-layer co-extrusion" process, with the inner layer being a weather-resistant layer and the outer layer being a wear-resistant layer. A 0.2μm nano-silicon dioxide (SiO₂) coating is added to the surface of the wear-resistant layer to reduce the friction coefficient to 0.15 and reduce wear with the wire clamp.
Environmental adaptability: The outer sheath must pass the "artificial climate aging test" in the IEC 60794-1-2 standard, including 1000 hours of xenon lamp radiation (simulating 10 years of natural aging), 12 cycles of hot and cold cycles (-40℃→+70℃) and other tests.

Deep integration of material science and structural mechanics
1. Molecular segment engineering: a protective chain from micro to macro
Anti-ultraviolet mechanism: The benzotriazole light stabilizer (such as Tinuvin 770) added to the outer sheath material can absorb 300-400nm ultraviolet rays and convert them into harmless heat energy. The benzene ring and triazole ring in its molecular structure form an "electron trap" to capture free radicals and delay polymer degradation.
Moisture and heat resistance: The polypropylene (PP) molecular segments in the water-blocking layer enhance stability through the dual mechanism of "cross-linking-crystallization". The cross-linking structure increases the glass transition temperature (Tg) of the material, and the crystallization area forms a physical barrier to prevent water molecules from penetrating.

2. Stress distribution optimization: Mechanical advantages of non-metallic composite structures
Interlayer shear strength: The interface between the water-blocking layer and the outer sheath adopts a "gradient transition design", and the interface adhesion is improved by adding a compatibilizer (such as maleic anhydride grafted polyethylene) to ensure that the interlayer shear strength is greater than 2.5 MPa.
Thermal expansion matching: The thermal expansion coefficient of the aramid yarn reinforcement (2.5×10⁻⁵/℃) is close to that of the outer sheath (1.8×10⁻⁴/℃), avoiding interlayer peeling caused by temperature difference.
Fatigue life prediction: Based on fracture mechanics theory, the fatigue life of ADSS optical cables can be estimated by the Paris formula (da/dN=C(ΔK)ⁿ). The crack growth rate (da/dN) of non-metallic composite structures is one order of magnitude lower than that of metal optical cables.

Technical standards and quality control
1. International standard system
IEC 60794-1-2: defines the environmental adaptability classification of optical cables. ADSS optical cables must pass ""Class A"" (-40℃ to +70℃) and ""Class B"" (-55℃ to +85℃) tests.

IEEE 1222: specifies the installation specifications of optical cables in power environments, requiring the hanging point potential of ADSS optical cables to be less than 25 kV (Class B sheath).

NEMA TC-7: American standard, emphasizing the UV resistance of optical cables, requiring the transmittance at a wavelength of 340 nm to be less than 5%.

2. Quality control process
Raw material testing: Fourier transform infrared spectroscopy (FTIR) analysis of materials such as AT/PE and POE to ensure that there are no impurities; water absorption rate test of SAP, requiring water absorption rate > 90% within 10 minutes.

Process monitoring: Use an online thickness gauge to monitor the outer sheath thickness in real time, with a deviation of ≤±0.05mm; use a tensile testing machine to verify the interlayer bonding strength.
Finished product inspection: Each batch of optical cables must pass the "water immersion test" (24 hours), "hot and cold cycle test" (12 cycles) and "ultraviolet accelerated aging test" (1000 hours).
