Outdoor Optical Power Composite Cable
The structure of the optical power composite cable is to cover 250 um optical fiber into the loose tube of the high modulus material. The core of the cable core is an FRP or metal core (some structures need to add a layer of PE cushion layer). The electric wire and the loose tube (and the filling rope) surround the center to strengthen the core to synthesize the compact and circular cable core. Double-coated strip (PSP) longitudinal package after extruded polyethylene or low smoke halogen (LSZH) cable sheath.
Share:
● Optimization of transmission line design, energy saving effect is significant.
● Fiber composite in the wire, stop by ground lightning fiber broken, broken wire.
● Will not be due to the role of the field strength caused by cable suffered electrical corrosion or damage caused by cable, broken fiber accident
● There is no hidden danger to the original route with additional line load.
Characteristics
● Have good flexibility and mechanical properties.
● Photoelectric integration, fully conserve pipeline resources.
● The cable part and the optical cable part are relatively independent structures, which is convenient for the introduction, the lead out, and the connection of the installation.
● Will power lines, telephone lines, TV lines, cable, monitoring lines, data lines, and other networks, save the cost.
● Greater operating temperature range.
● Greater construction temperature range.
● Optical cable diameter and bending radius are small, in the next small space also can freely install compatible optical signal transmission and power transmission at the same time.
Dimensions
|
Note: The cable sheath material, color and printing information can be customized according to customer requirements. |
Dimensions
|
|
Project |
Unit |
Description |
|
|
Composite Cable |
Filling material |
/ |
PP rope |
|
|
Wrapping tape material |
/ |
Polyester Belting |
||
|
Sheath Material |
/ |
LZSH/Flame-retardant pvc |
||
|
Maximum thickness of sheath |
mm |
0.8 |
||
|
Minimum thickness of sheath |
mm |
0.62 |
||
|
OD |
mm |
7.9±0.2 |
||
|
Cable color |
/ |
Gray/Black |
||
|
Reference weight |
kg/km |
100 |
||
|
Voltage level/withstand voltage |
V |
400VDC/1min |
||
|
Minimum bending radius |
mm |
160 |
||
|
|
Project |
Unit |
Description |
|
|
Composite Cable |
OD |
mm |
10.0±0.3 |
|
|
Thickness of sheath |
mm |
1.2±0.1 |
||
|
Sheath Material |
/ |
TPU |
||
|
Cable color |
/ |
Black |
||
|
Metal braiding |
/ |
Stainless steel |
||
|
Armor |
mm |
Stainless steel |
||
|
Strength member |
/ |
Aramid yarn |
||
|
Reference weight |
kg/km |
150 |
||
Dimensions

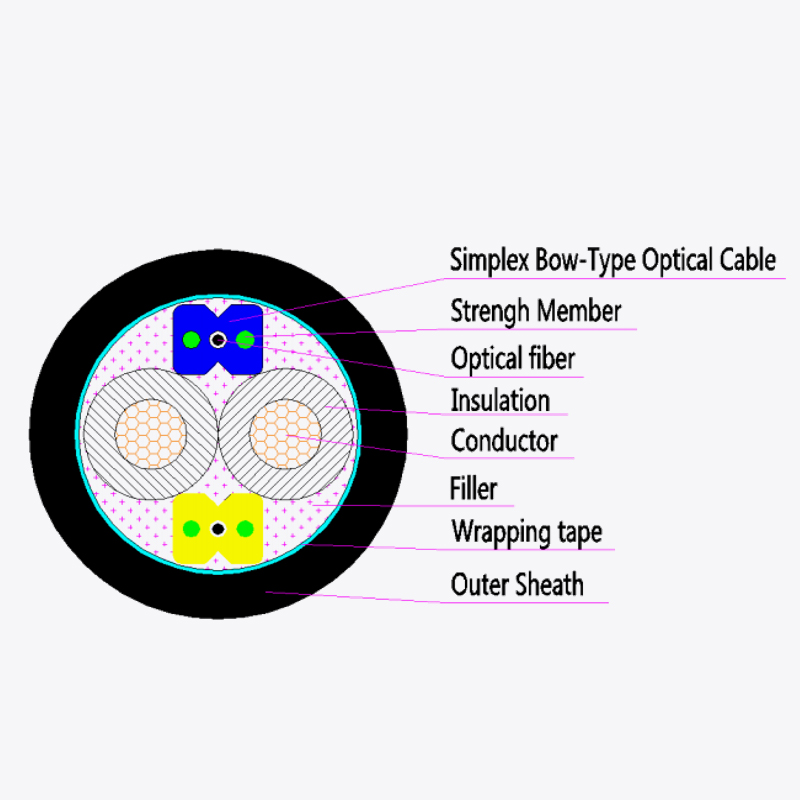

Optical Power Composite Cable Ⅰ
|
Project |
Unit |
Description |
|
|
Simplex Bow-Type Optical Cable |
Optical fiber |
/ |
G.652D |
|
Strength member |
/ |
Steel wire with glue |
|
|
Strength member specification |
mm |
0.45±0.05 |
|
|
OD |
mm |
2.1±0.1*1.6±0.1 |
|
|
Sheath Material |
/ |
LSZH |
|
|
Cable color |
/ |
Yellow and blue or Black and white |
|
|
Electric cable part |
Conductor structure |
/ |
30/0.25 |
|
Insulation Materials |
/ |
XLPE/Flame-retardant pvc |
|
|
Maximum thickness of sheath |
mm |
0.6 |
|
|
Minimum thickness of sheath |
mm |
0.45 |
|
|
OD |
mm |
2.8±0.1 |
|
|
Cable colour |
/ |
Blue and brown |
|

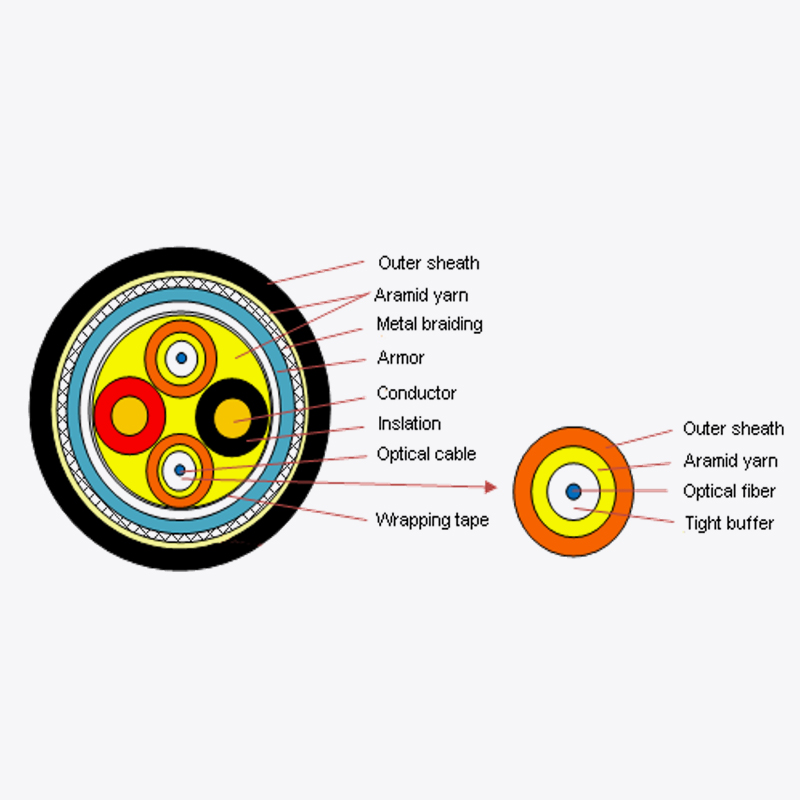

Optical Power Composite Cable Ⅱ
|
Project |
Unit |
Description |
|
|
Optical Cable |
Optical Fiber |
/ |
SM/MM |
|
Tight Buffer Material |
/ |
Nylon |
|
|
Tight Buffer OD |
mm |
0.9±0.05 |
|
|
Strength Member |
/ |
Aramid yarn |
|
|
Outer Sheath |
/ |
LSZH |
|
|
Cable color |
/ |
Orange or Other |
|
|
Electric Cable Part |
Conductor structure |
/ |
Copper wire |
|
Insulation Materials |
/ |
XLPE/Flame-retardant pvc |
|
|
OD |
mm |
2.0±0.1 |
|
|
Cable colour |
/ |
Red and black/Blue and brown |
|
