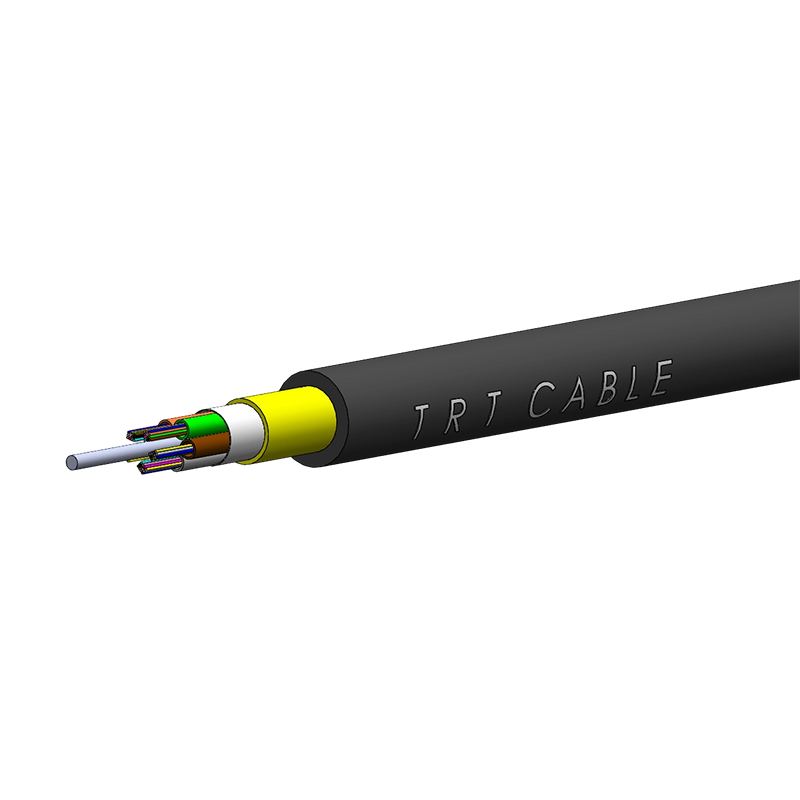

Outdoor optical fiber optic cable ADSS

ADSS cable use fiber ribbon as optical communication medium. The wrapped with a layer of aramid yarn as strength member units, and the cable completed with PVC or LSZH material jacket.

Characteristics

● Can be installed without shutting offthe power.

● ExcellentAT performance. The maximum inductive at the operating point of the AT jacket can reach 25kV.

● Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.

● Large span lengths and the largest span is over 200m.

● Good performance of tensile strength and temperature.

● The design life span is over 30 years.

Dimensions(mm)

ax. allowable working tension(KN)	Break strength(KN)	Year average working tension(KN)	Weight (kg/km)		Diameter(mm)	Operation temperature（℃）
ax. allowable working tension(KN)	Break strength(KN)	Year average working tension(KN)	PE sheath	AT sheath	Diameter(mm)	Operation temperature（℃）
2.5	6.25	1.56	119	126	12.0	-40~+60
3.5	8.75	2.19	121	129	12.2
4.5	11.25	2.81	124	132	12.3
6.0	15	3.75	128	136	12.5
7.0	17.5	4.38	131	139	12.7
8.0	20	5.00	134	142	12.8
9.0	22.5	5.63	136	144	12.9
10.0	25	6.25	138	147	13.0
11.0	27.5	6.88	142	150	13.1
12.0	30	7.50	144	153	13.2
14.0	35	8.75	148	157	13.5
16.0	40	10.00	154	163	13.7
18.0	45	11.25	159	169	14.0
20.0	50	12.50	164	173	14.2

Note:

1) Only a part of ADSS cables are listed in the table,2~36 fibers in the ADSS cable;

2) FOC will design the cable depending on the request of climate, span, and voltage degree for the customer.

Dimensions(mm)

Fiber Type	Attenuation				OFL Bandwidth		Effective mode bandwidth @850nm	Ethernet link length	Minimum bending radius
Fiber Type	@850 nm	@1300 nm	@1310 nm	@1550 nm	@850 nm	@1300 nm	Effective mode bandwidth @850nm	Ethernet link length	Minimum bending radius
G.657A1	--	--	≤0.36dB/km	≤0.22dB/km	--	--	--	--	10mm
G.657A2	--	--	≤0.36dB/km	≤0.22dB/km	--	--	--	--	7.5mm
OM3	≤3.0dB/km	≤1.0dB/km	--		≥1500MHz·km	≥500MHz·km	≥2000MHZ.km	≤300m	30mm
OM4	≤3.0dB/km	≤1.0dB/km	--		≥3500MHz·km	≥500MHz·km	≥4700MHZ.km	≤550m	30mm

Fiber Type

B1.3 = G652D OM3 = MaxBand*300

B6A1 = G657A1 OM4 = MaxBand*550

B6A2 = G657A2 BI-OM3 = MaxBand*300

A1 = 50/125μm BI-OM4 = MaxBand*550

A1b = 62.5/125μm
