Stranded Loose Tube Armored Cable GYTA53

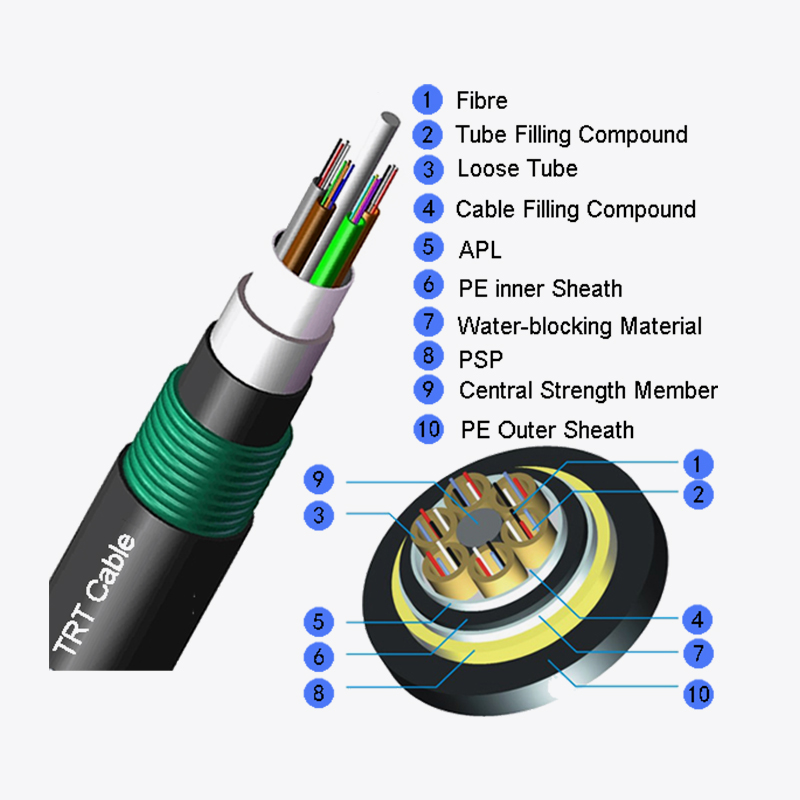

The fibers are positioned in a loose tube made of a high-modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, is located in the center of the core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Share:
Characteristics
● Good mechanical and temperature performance
● High-strength loose tube that is hydrolysis-resistant
● Special tube-filling compounds ensure the critical protection of fiber
● Crush resistance and flexibility
● The following measures are taken to ensure the cable is watertight:
● Steel wire is used as the central strength member
● Loose tube filling compound and 99.99% cable core filling
● APL moisture barrier
● PSP enhances moisture-proof
● Water-blocking material
Dimensions
|
Standard Reel Length: 2000m; Other lengths available on request. |
Dimensions
|
Cable Type (Increased by 2 fibers) |
Fibre Count |
Structure |
Cable Weight Kg/Km (Ref) |
Tensile Strength Long/Short-Term(N) |
Crush Resistance Long/Short Term(N/100mm) |
Bending Radius Static/Dynamic(mm) |
|
GYTA53-2~30F |
2~30 |
1+5 |
177 |
1000/3000 |
1000/3000 |
12.5D/25D |
|
GYTA53-32~72F |
32~72 |
1+6 |
194 |
|||
|
GYTA53-74~84F |
74~84 |
1+7 |
239 |
|||
|
GYTA53-86~96F |
86~96 |
1+8 |
239 |
|||
|
GYTA53-98~108F |
98~108 |
1+9 |
275 |
|||
|
GYTA53-110~120F |
110~120 |
1+10 |
275 |
|||
|
GYTA53-122~132F |
122~132 |
1+11 |
312 |
|||
|
GYTA53-134~144F |
134~144 |
1+12 |
312 |
Dimensions
|
Fiber Type |
Attenuation(+20℃） |
Bandwidth |
Numerical Aperture |
Cable Cut-off Waverlength λcc |
||||
|
@850 nm |
@1300 nm |
@1310 nm |
@1550 nm |
@850 nm |
@1300 nm |
|||
|
G.652 |
-- |
-- |
≤0.36dB/km |
≤0.22dB/km |
-- |
-- |
-- |
≤1260 nm |
|
G.655 |
-- |
-- |
≤0.40dB/km |
≤0.23dB/km |
-- |
-- |
-- |
≤1450 nm |
|
50/125 µm |
≤3.0dB/km |
≤1.0dB/km |
-- |
≥500MHz·km |
≥500MHz·km |
0.200±0.015NA |
-- |
|
|
625/125 µm |
≤3.3dB/km |
≤1.0dB/km |
-- |
≥200MHz·km |
≥500MHz·km |
0.275±0.015NA |
-- |
|
