PLC Splitter

PLC Splitter is a type of optical power management device that is fabricated using silica waveguide technology. We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.

PREV：No previous product Next：Optical adapter

Specifications

● Low Insertion loss

● Low PDL

● Compact Design

● Good channel-to-channel uniformity

● Wide Operating Wavelength: From 1260nm to 1650nm

● Wide Operating Temperature: From -40oC to 85oC High Reliability and Stability

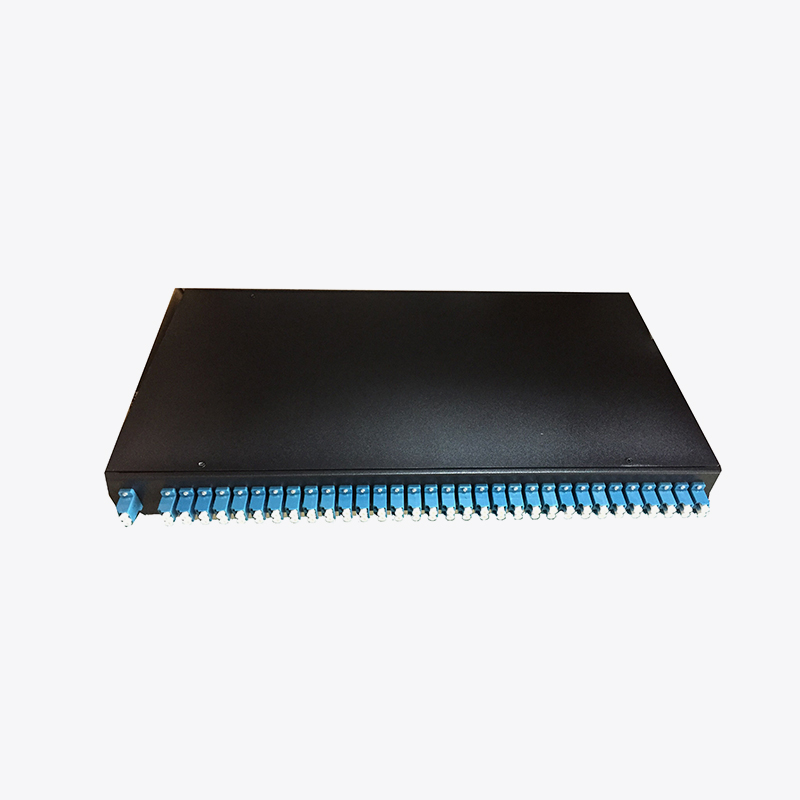

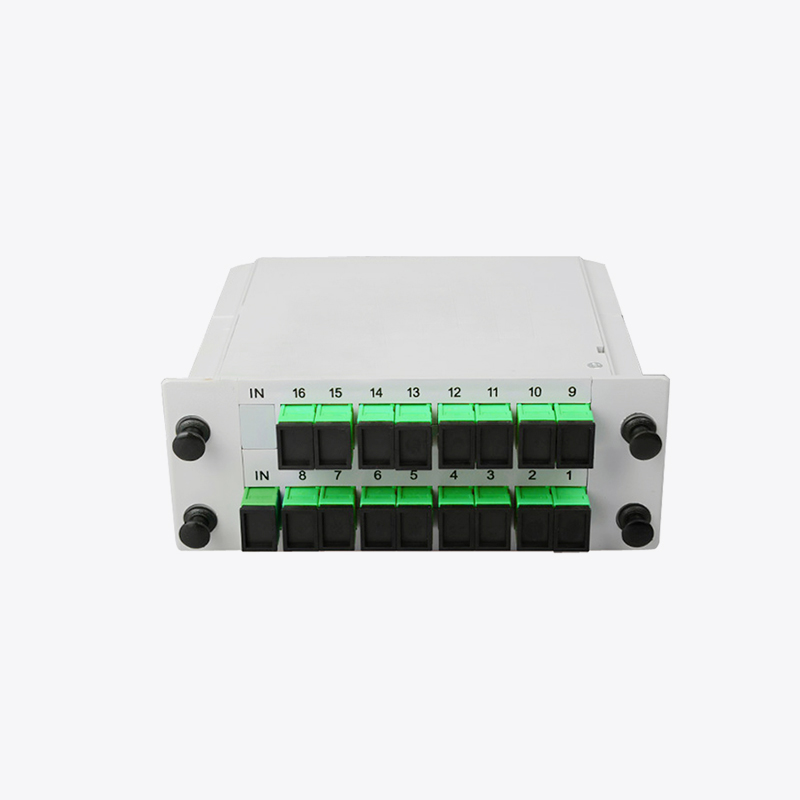

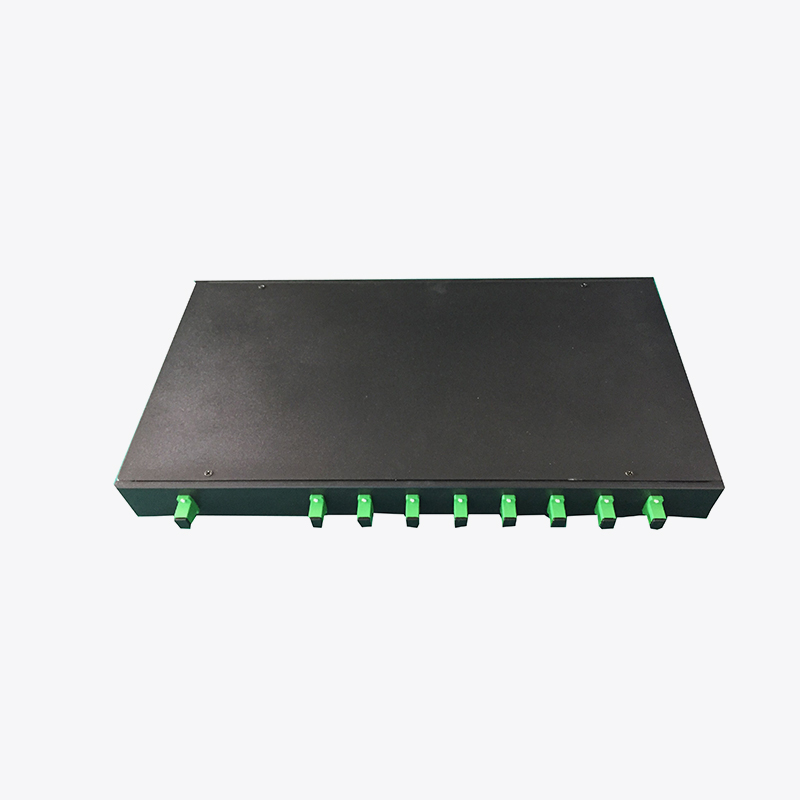

PLC Splitter Type

1. Classification by shape

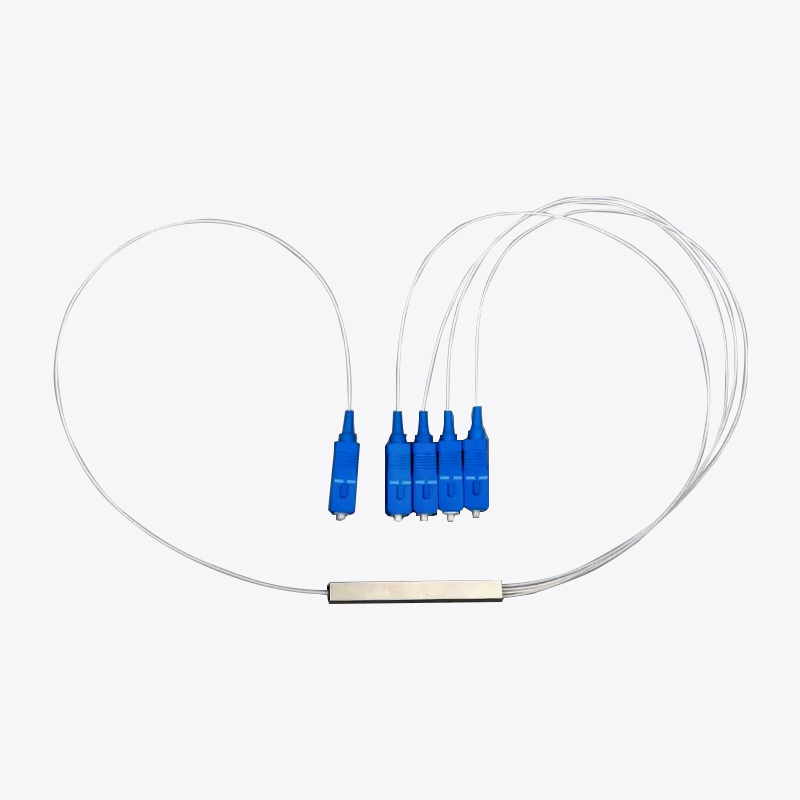

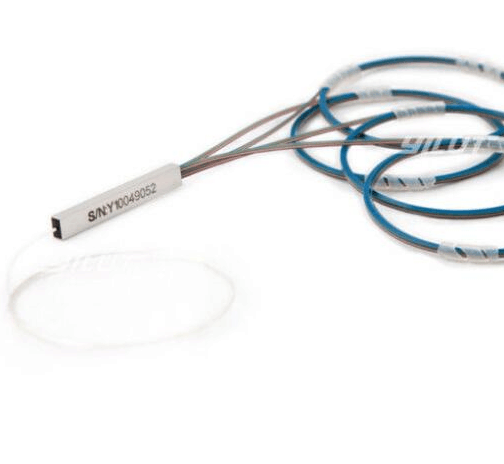

● Mini PLC Splitter

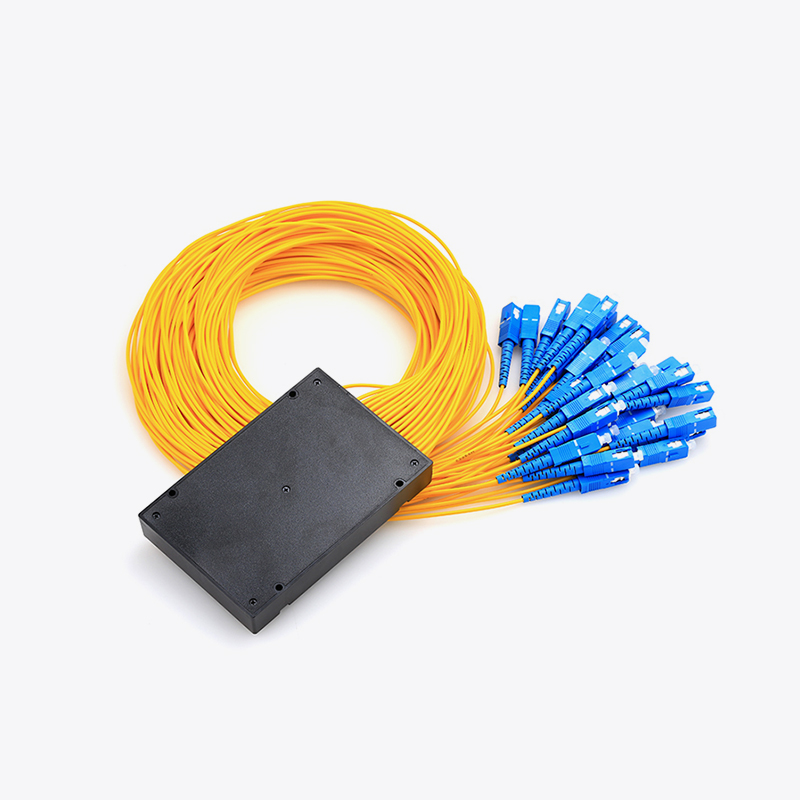

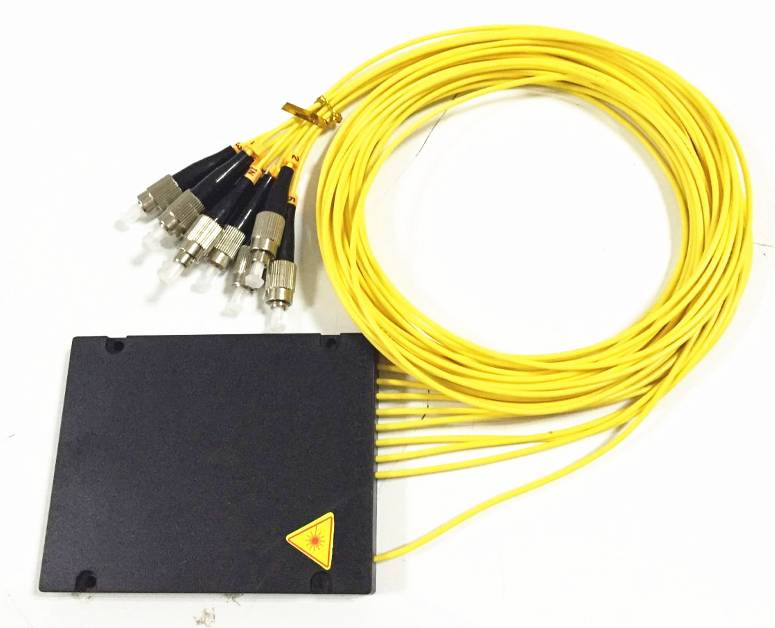

● ABS Box PLC Splitter

2. Classification by series

1/2*2、1/2*4、1/2*8、1/2*16、1/2*32、1/2*64、1/2*126

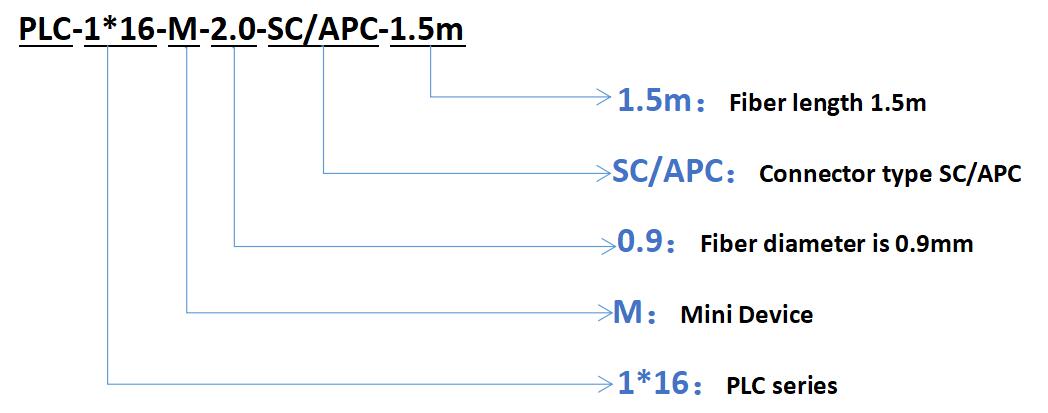

Product Structure

The length of optical fiber can be customized according to the actual requirement.

Connector type：SC/APC、FC/APC、LC/APC、FC/UPC、LC/UPC、ST/UPC

Fiber diameter：0.9mm/2.0mm/3.0mm

PLC Device: Mini/ABS Box

PLC series：1/2*2/4/8/16/32/64/128

Mechanical Specification:

1*N Splitters:

Parameter		Unit	Value
Product Type			1x2	1x4	1x8	1x16	1x32	1x64	1x128
Operating Wavelength		nm	1260~1650
Insertion Loss	Typ.	dB	3.6	7.0	10.2	13.5	16.6	20.1	24.5
Insertion Loss	Max.	dB	4.1	7.5	10.5	13.8	17.1	20.8	25.5
Uniformity (Max.)		dB	0.5	0.8	0.8	1.4	1.5	2.0	2.6
PDL(Max.)		dB	0.2	0.3	0.3	0.3	0.3	0.5	0.8
Return Loss		dB	≥55(APC type connectors) / 50(UPC type connectors)
Directivity		dB	≥55
Operating & StorageTemperature		℃	-40～+85

2*N Splitters:

Parameter		Unit	Value
Product Type			2x2	2x4	2x8	2x16	2x32	2x64	2x128
Operating Wavelength		nm	1260~1650
Insertion Loss	Typ.	dB	4.1	7.2	10.5	13.8	17.0	20.5	24.8
	Max.	dB	4.5	7.6	11.0	14.8	17.9	21.5	25.8
Uniformity (Max.)		dB	0.8	1.0	1.2	1.5	1.8	2.5	3.0
PDL(Max.)		dB	0.2	0.3	0.3	0.3	0.3	0.5	1.0
Return Loss		dB	≥55(APC type connectors) / 50(UPC type connectors)
Directivity		dB	≥55
Operating & StorageTemperature		℃	-40～+85

PLC Splitters Material Requirements

1. Optical Fiber

Project	Specifications
Optical Fiber	G657A1
Ф(mm)	0.9/2.0/3.0
Optical Cable	White/Hytrel Yellow/PVC/Aramid fiber

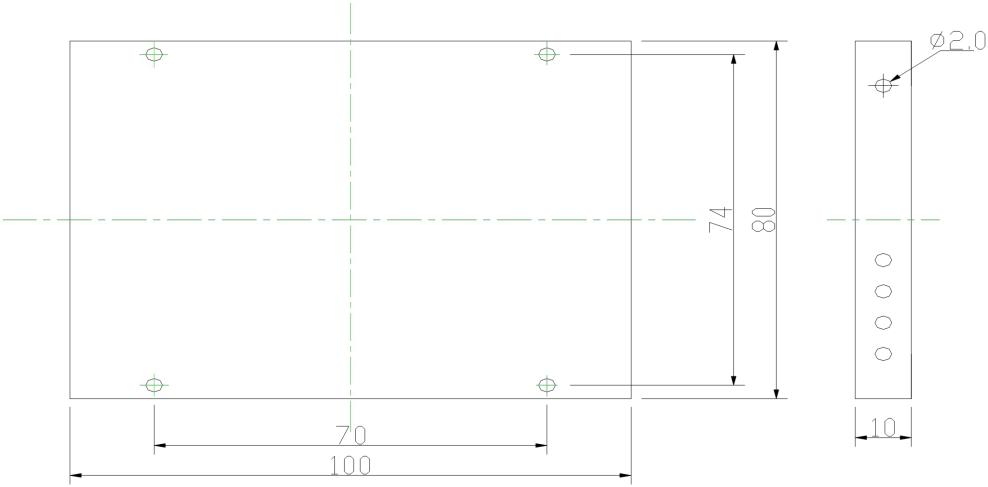

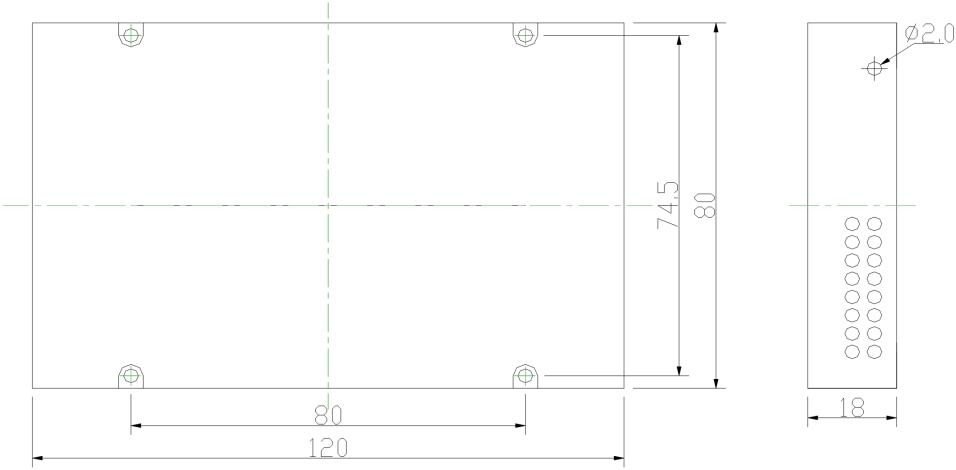

2. ABS Box size (unit: mm)

Product Type	Unit	Optical Cable	Size（Length, width and height ）
1/2x2	mm	2.0/3.0	100x80x10
1/2x4	mm	2.0/3.0	100x80x10
1/2x8	mm	2.0/3.0	100x80x10
1/2x16	mm	2.0/3.0	120x80x18
1/2x32	mm	2.0/3.0	120x80x18
1/2x64	mm	2.0/3.0	120x80x18 or 140x114x18
1/2x128	mm	2.0/3.0	140x114x18


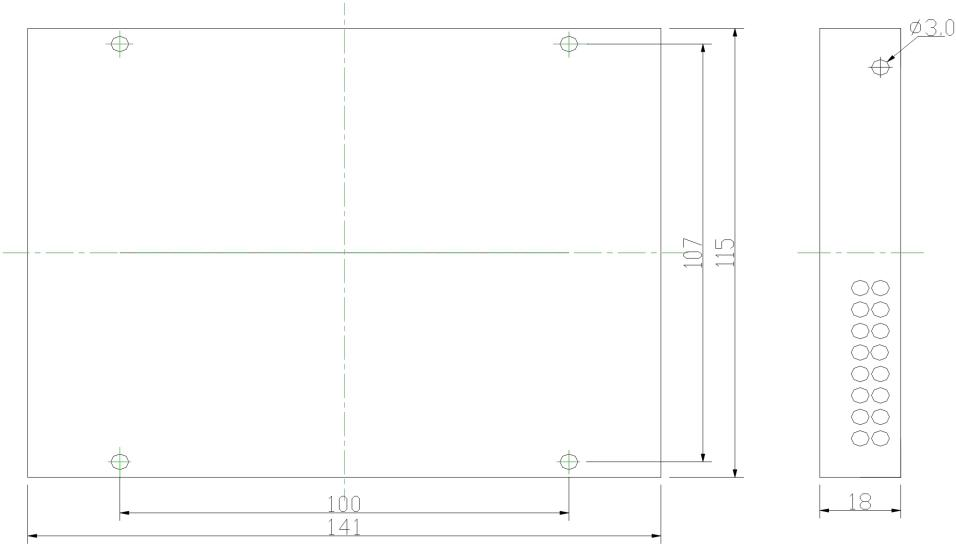

100x80x10	120x80x18	140x114x18

Connector Specifications


MIN IN BOX	ABS Box

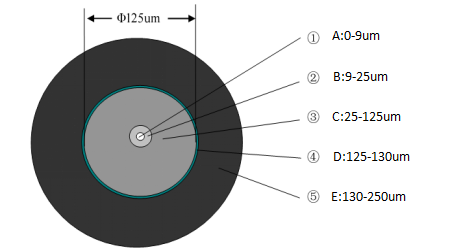

1. Face Specification

Scope	Defect description	Standard
①A:	Scratches And Nicks	No
	Bubbles And Spots	No
	Foreign Body	No
②B:	Scratches And Nicks	No
	Bubbles And Spots	No
	Foreign Body	No
③C:	Scratches And Nicks	≤2um and ≤1pcs
	Bubbles And Spots	≤2um and ≤3pcs
	Foreign Body	No
④D:	Scratches And Nicks	≤5um and ≤1pcs
	Bubbles And Spots	≤5um and ≤2pcs
	Foreign Body	No
⑤E:	Scratches And Nicks	≤5um and ≤3pcs
	Bubbles And Spots	≤5um and ≤3pcs
	Foreign Body	Allow slightly non removable

2. Connector Face 3D

Connector(mm)		ROC(mm)	Apex Offset(μm)	Fiber Height(nm)	APC-Angle (°)
Ф2.5	UPC	10～25	≤50	-100～+50	——
Ф2.5	APC	5～15	≤50	-100～+50	8 ±0.5
Ф1.25	UPC	7～25	≤50	-100～+50	——
Ф1.25	APC	5～12	≤50	-100～+100	8 ±0.5
1.In the fiber height column, + denotes prominence, - denotes depression. 2. ROC/Apex Offset/Fiber Height UPC percent of pass ≥80%. APC percent of pass ≥70%.

Click to view

Question? Check out our answer.

How long will it take to get a reply after we send you an inquiry?

We will reply within 4 hours after receiving the inquiry on weekdays.
Are you a direct manufacturer or a trading company?

We are a direct manufacturer, producing and selling our own products. And we also have our own international trade department, engaged in related goods trade.
What products can you provide?

We mainly produce various types of communication optical cables and optical cable components as well as various communication tools.
What are the main application areas of your products?

Our products cover almost the entire application field of optical communication, including major operators, network companies, private networks and other communication industries.
Can you make customized products?

Yes, we mainly produce customized products. We develop and produce products according to the specifications or samples provided by customers.
