T4-11 Fiber Optic Quick Connector-Suzhou TeRuiTong Communication Co., Ltd.

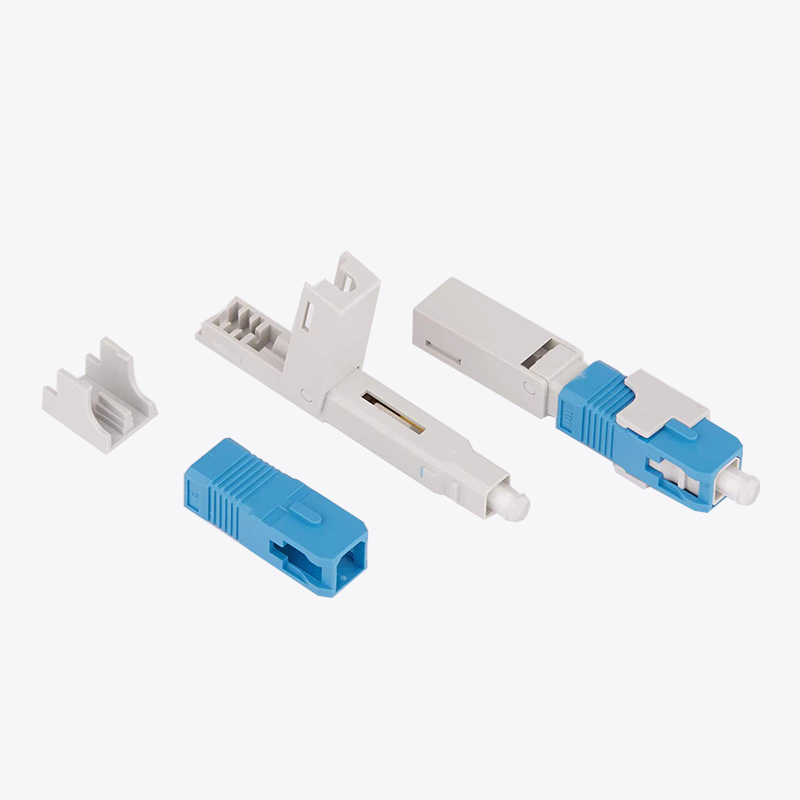

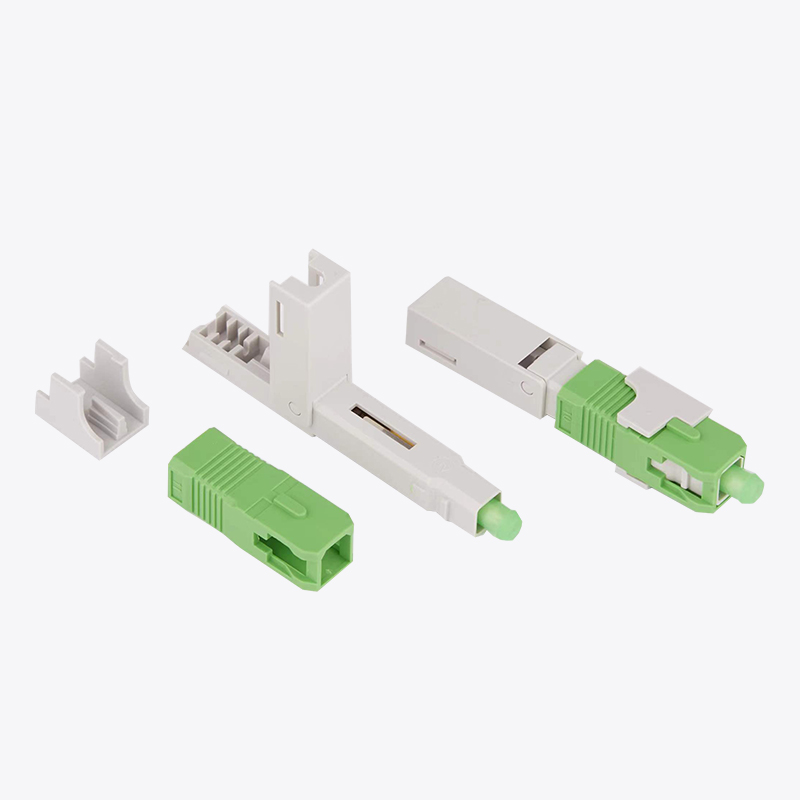

T4-11 Fiber Optic Quick Connector

Introduction

Quick Assembly SC connector can provide quick and easy terminations of fibers in the field. It allows the installer to terminate and make connections in minutes at equipment and fiber patch panels. This connector system has features of high installation quality, high success rate, and high reliability.

Specifications

Parameters	Value	Parameters	Value
Insertion Loss	Average ≤0.3 DB, max ≤0.5 DB	Repeatability (500 Mating Times)	Average ≤0.3 DB, max ≤0.5 DB
Return Loss	UPC≥45DB APC≥50dB	Temperature cycle
Tensile strength	F>50N	Vibration test
Operating Temperature	-20 ~ +75℃	Flooding test
Storage Temperature	-40 ~ +85℃	Tensile strength	F>50N

Necessary Tools


Model: LTS-242 FTTH Drop Cable Stripper	LTS-212/213 Fiber Stripper	LFC-300 Fiber Cleaver

Fixed length device	Dust-free cloth & alcohol bottle

Question? Check out our answer.

How long will it take to get a reply after we send you an inquiry?

We will reply within 4 hours after receiving the inquiry on weekdays.
Are you a direct manufacturer or a trading company?

We are a direct manufacturer, producing and selling our own products. And we also have our own international trade department, engaged in related goods trade.
What products can you provide?

We mainly produce various types of communication optical cables and optical cable components as well as various communication tools.
What are the main application areas of your products?

Our products cover almost the entire application field of optical communication, including major operators, network companies, private networks and other communication industries.
Can you make customized products?

Yes, we mainly produce customized products. We develop and produce products according to the specifications or samples provided by customers.

Suzhou TeRuiTong Communication Co., Ltd.

Suzhou TeRuiTong Communication Co., Ltd. is located in the Wuzhong District, Suzhou, Jiangsu Province, China. It specializes in producing all kinds of indoor optical cables and also can develop the products according to customers' requirements. Our main products include indoor cable, outdoor cable, FTTH cable, flexible metal armored cable, a range of jumper wires and cable accessories which are all with the ISO9001&ISO14000 QS Certification.

The products are widely used in various fields, such as the computer room's construction of China Telecom and China Mobile, the networking engineering of buildings, the radio network, defense communications and shipping communications. We are introduced to the following fields civil engineering, bridge construction, electric power systems, subway temperature and straining sensing through wide sensor equipment and professional communication companies.

We are confident that we have the experience to be your long-term strategic partner. Let us join hands and build a brighter future!
