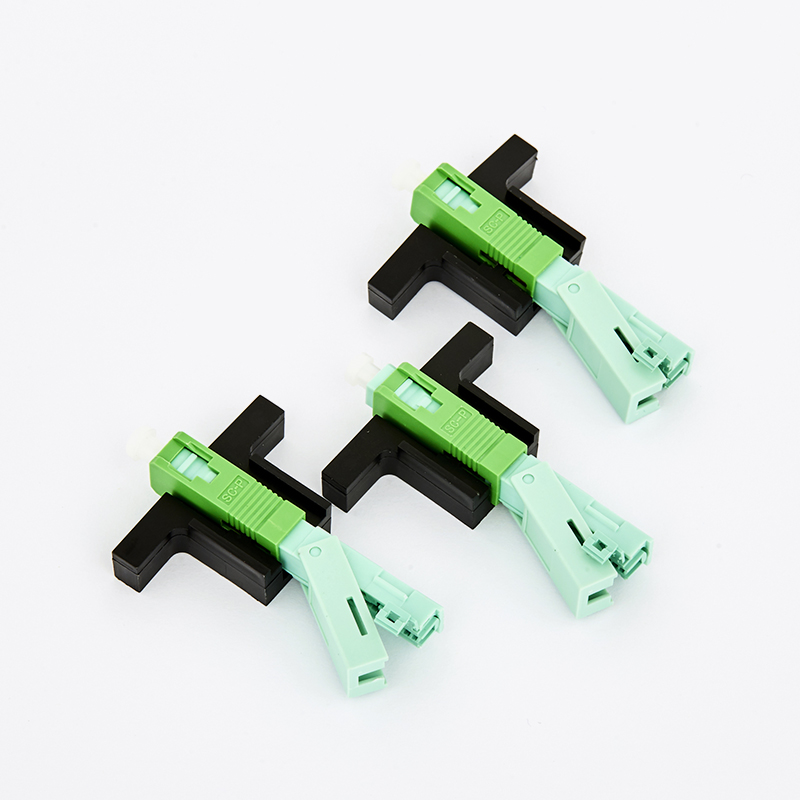

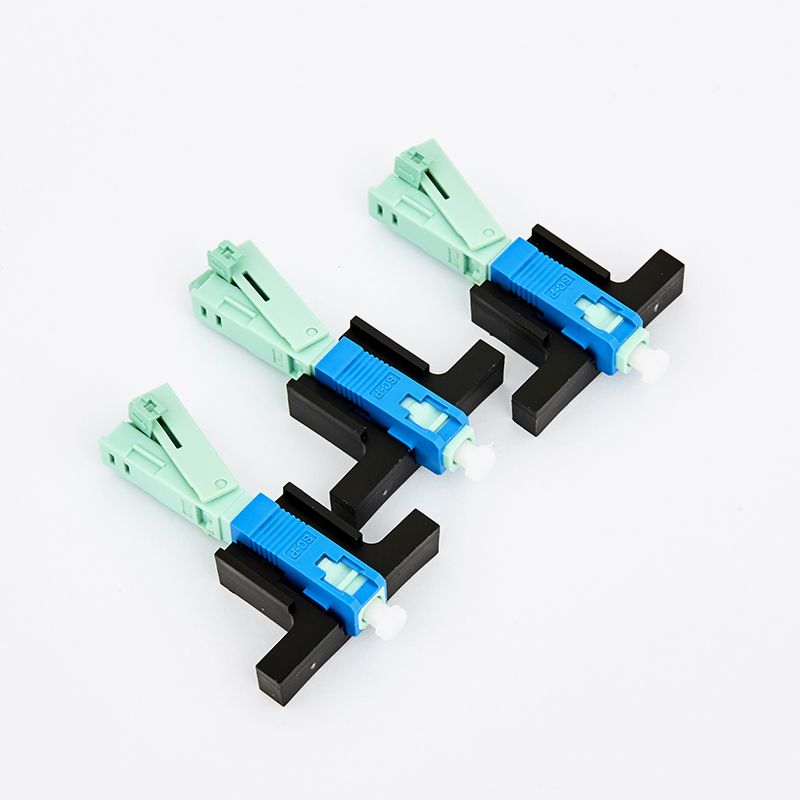

T4-13 Fast Connector

Introduction

Quick Assembly SC connector can provide quick and easy terminations of fibers in the field. It allows the installer to terminate and make connections in minutes at equipment and fiber patch panels. This connector system has features of high installation quality, high success rate, and high reliability. Applicable to 2*3,2*1.6 cables.

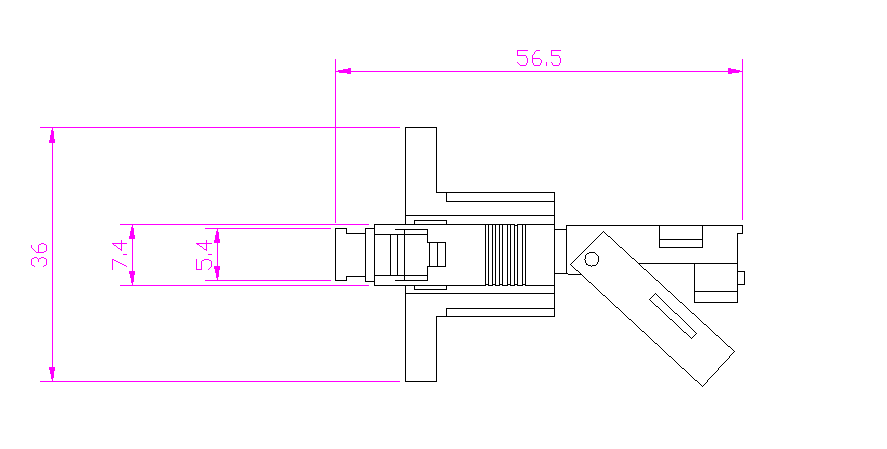

Product length:

56.5MM

Optical Characteristics：

Category	Specification
Applicable for	Drop cable. Indoor cable
Fiber mod	Single-mode or Multi-mode
Fiber type	G.652D, G.657A2,
Fiber cable	3.0*2.0mm rubber-insulated optical cable ∅3.0/∅ 2.0 /∅0.9 insulated optical cab
Fiber diameter	0.125mm
Force holds 2 x 3mm cable type at the beginning of the fast connector	≥ 45 N, loss ≤ 0.3 dB
Fiber lock	Lock holds fiber reliability, bears hang force ≥ 1.5 N, attenuation changes ≤ 0.2 dB
Working wavelength	1310 nm, 1490 nm, 1550 nm
Operation time	S	About 50(no fiber cut)
Insertion Loss	dB	≤0.35
Insertion Loss Typical value	dB	0.3
Return Loss	dB	UPC≥50, APC≥55
Fastening strength of naked fiber	N	≥3
Tensile strength	N	≥45
Reusable	Time	≥10 time
Operating Temperature		-40~+85
On-line tensile strength（20N）	dB	ΔIL≤0.3
Mechanical durability (500 times)	dB	ΔIL≤0.3
Drop-off test (drop-off height 4m, once per direction, totally 3 times)	dB	ΔIL≤0.3

Environmental Performance Requirements:

Category	Specification
Category	Condition	IL Variation	RL Variation	Appearance
High TEMP	85℃, 96H	≤0.3	≤5	No mechanical da mage, like deform action, cracking and untight
Low TEMP	-40℃, 96H	≤0.3	≤5
Temperature Cycle	Cycle: 8 hours Total: 12 cycles / 96 hours Temperature Maintenance: 1 hour	≤0.3	≤5
Temperature/ Humidity	85℃, 95%RH, 96H	≤0.3	≤5
Immersion	25℃, 96H	≤0.3	≤5
Salt Mis	5% NaCl, 6.5＜PH＜ 7.5,35℃,96H	≤0.3	≤5

Mechanical Performance Requirements:

Category	Specification
Category	Condition	IL Variation	RL Variation	Appearance
Impact	Height: 4m; 1 drop each axis; 3 cycles	≤0.3	≤5	No mechanical da mage, like deform on, cracking and untight
Vibration	Frequency: 10 ～ 50HZ; Sweep: 45 times/min; amplitude: 0.75mm; Duration:30min each axial	≤0.3	≤5
Torsional	Pull： 15N; The distance between Loading location and fast connector: L = 22-28cm; Rate： 10 times/min. Times:	≤0.3	≤5
Tensile	Pull： 50N; The distance between Loading location and fast connector: L = 3M; Duration:1min	≤0.3	≤5
