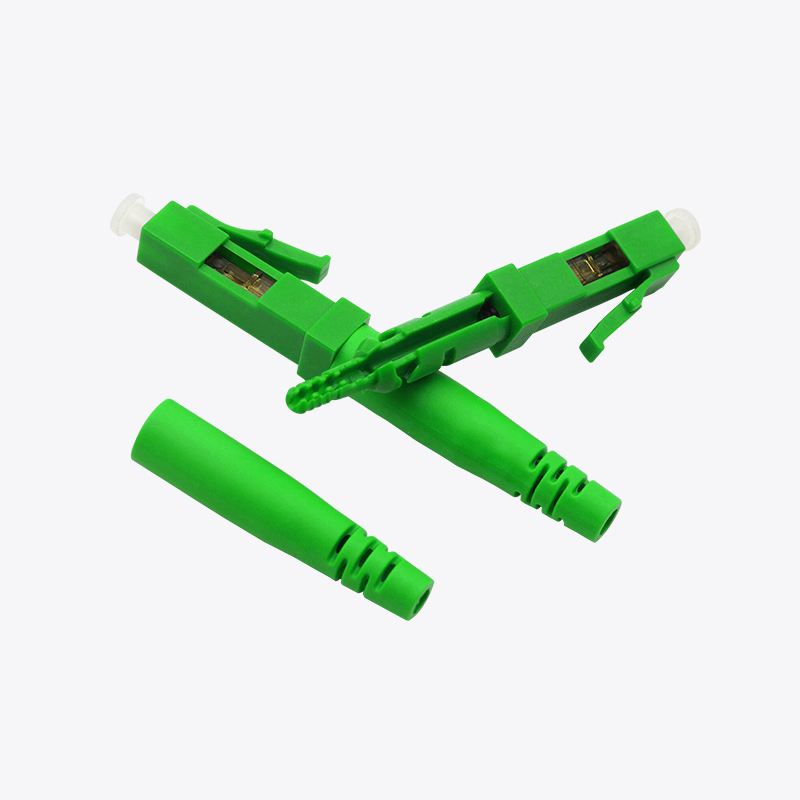

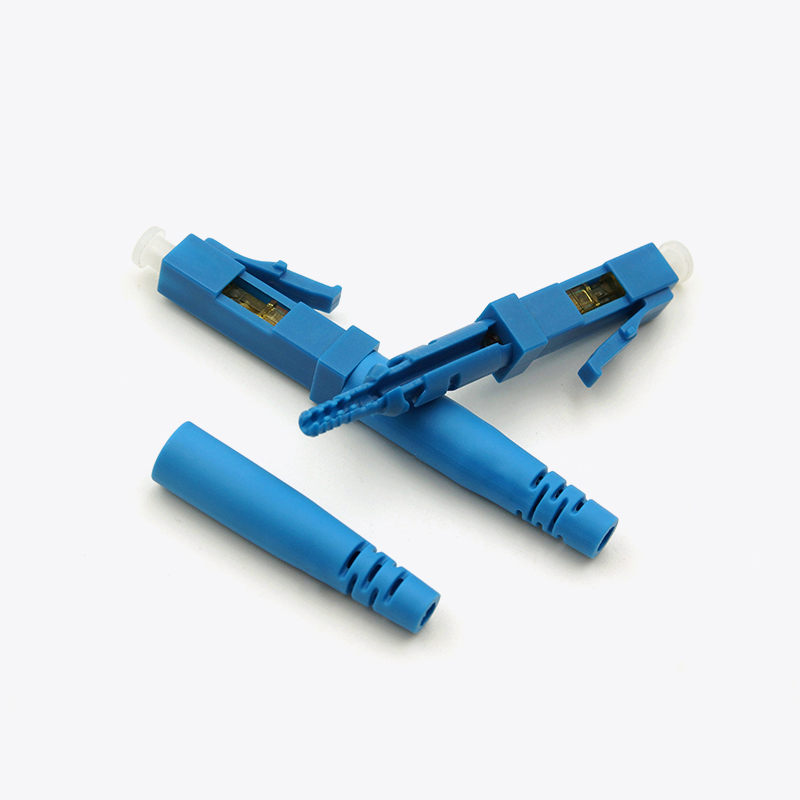

T4-54 LC Fiber Optic Quick Connector

Introduction

Product overview: LC fiber quick connector is a kind of quick connector for physical connection. It uses special optical silicone grease filling to replace the easy-to-lose matching paste. It is used for quick physical connection of small equipment. It is matched with a group of optical fiber standard tools. It is simple and accurate to complete the standard t of optical fiber and reach the physically stable connection of optical fiber. The assembly steps are simple and low skills are required. the connection success rate of our connector is nearly 100%, and the service life is more than 20 years.

Characteristic

Device length	47mm, suitable for embedded small device connection,47mm
Working wavelength	SM：1310nm/1550nm
Applicable optical cable	2.0mm, 3.0mm, 900μm
Insertion loss	Single head ≤ 0.4dB, double head ≤ 0.7dB
Return loss	≥50dB (UPC) ≥55dB (APC)
End face performance	Conform to YD T 2341. 1-2011
Mechanical durability	1000 times
Cable tension	2.0mm ，3.0mm≥30N ，900μm≥10N
Torsion of optical cable	2.0mm，3.0mm≥15N
Drop performance	Allow 10 drops under 1.5m hin eight without abnormal performance
One-time assembly success rate	≥98%
Repeatable assembly	10 times
Device operating temperature	-40℃~+80℃
Hot and humid working environment	Long-term operation under 90% relative humidity,70 ℃
Standard optical fiber tool replace third-party cutter	Ensure that the connector is physically and permanently docked
Drop performance of optical fiber standard tools	The end performance of 1.5m hard ground dropping by 5 times remains unchanged

Key Accessories

Fiber filler

Special optical silicone grease (not ordinary and easy-to-lose conventional matching paste)

Material filling quantity

0.5X1.5X3mm=2.25mm³ (end face filled with 10000 times volume compared with previous generation product)

Volatilization test at -40 ℃ to +80 ℃ for 300h

Volatilization weight < 5% (40 years service life under simulation nature)

Material, Process, and Molding

Molding material	PEI, PC
Flame retardant grade	UL94 V-0
