Aerial fiber optic cable (ASU-unitube cable, GYFY)

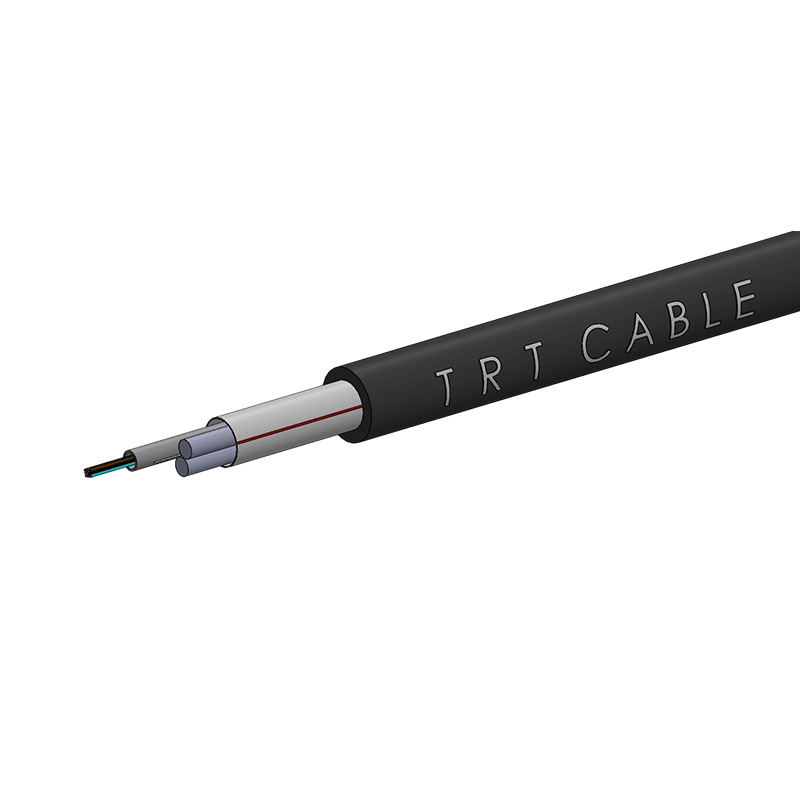

Optical fibers are housed in loose tubes that are made of high-modulus plastic and filled with waterproof compounds. Loose tubes and FRP are SZ stranded together. Water-blocking yarns are used in the cable core to prevent it from water ingress. The polyethylene outer sheath is extruded around the cable. One rip cord is used under the cable sheath to open it.

Characteristics

● The unique second coating and stranding technology provide the fibers with enough space and bending endurance, ensuring the fibers' good optical properties in the cable.

● Accurate process control ensures good mechanical and temperature performance.

● High-quality raw material guarantees the long service life of the cable.

Dimensions(mm)

Item	Contents
		2~12	13~24	2~12	13~24
Loose tube	Number	1
	Diameter (mm)	2.3	2.5	2.3	2.5
FRP	Number	2
	Diameter (mm)	1.8	2.0	2.0	2.25
Water Blocking Material	Material	Water Blocking Yarn
Sheath	Material	PE
	Color	Black
	Thickness(mm)	Nominal: 1.8
Ripcord	Number	1
Cable diameter(mm) Approx.		7.0	7.5	7.2	7.7
Cable weight(kg/km) Approx.		45	55	50	60

Dimensions(mm)

Fibre and Loose Tube Identification

Color Code	1	2	3	4	5	6
	Green	Yellow	White	Blue	Red	Violet
	7	8	9	10	11	12
	Brown	Pink	Black	Grey	Orange	Aqua
	13	14	15	16	17	18
	Green with black stripe	Yellow with black stripe	White with black stripe	Blue with black stripe	Red with black stripe	Violet with black stripe
	19	20	21	22	23	24
	Brown with black stripe	Pink with black stripe	Natural	Grey with black stripe	Orange with black stripe	Aqua with black stripe
