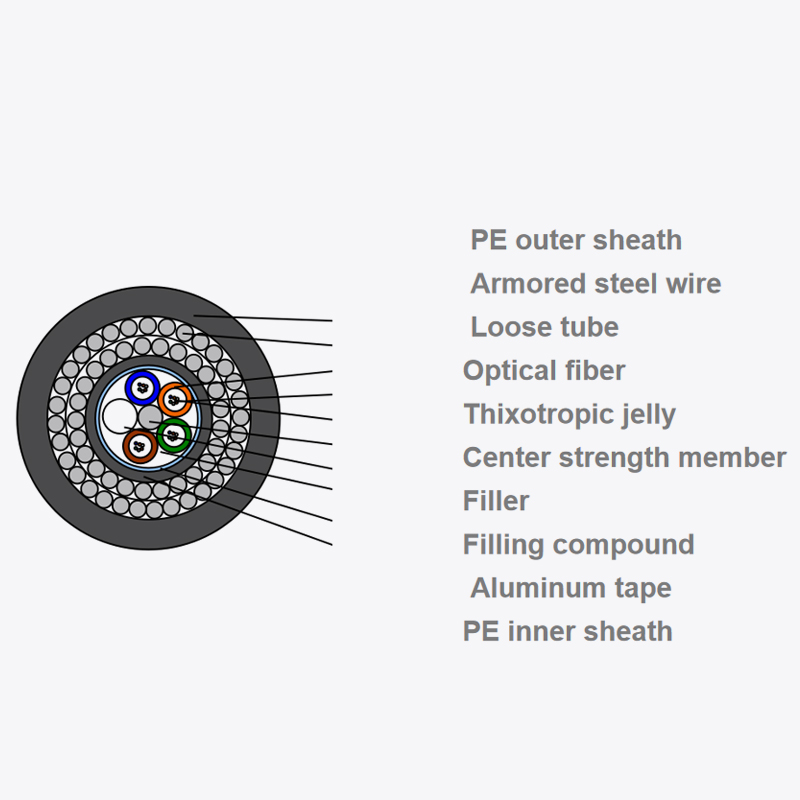

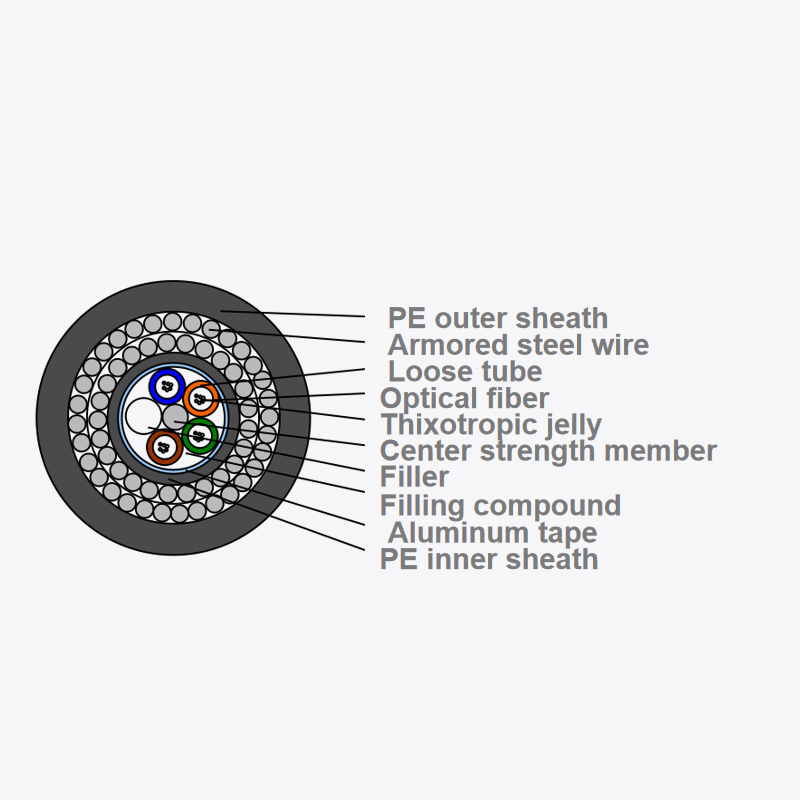

Outdoor optical fiber optic cable GYTA333
GYTA33 is an underwater use fiber optic cable, it is steel wires armored to be suitable for installation in harsh environments, GYTA33 can also be directly buried underground, and this cable is available from 2 cores to 144 cores.
Share:
● Suitable for offshore, water bottom, and climbing installation.
● Applicable to long-distance communication and interoffice communication.
Characteristics
● Full cross-section water-blocking structure to ensure good water-blocking and moisture resistance.
● The phosphate wire center stiffening member is of high modulus and corrosion resistance.
● Double-sided vertically-clad laminated corrugated aluminum tape with thin round steel wire armor ensures mechanical resistance to compression, tensile, and ballistic performance, and meets the application requirements of climbing direct burial and underwater laying.
Dimensions
|
Standard Reel Length: 2000m; Other lengths available on request. |
Dimensions
|
Fiber count |
2~30 |
32~36 |
38~60 |
62~72 |
|
|
Element number |
5 |
6 |
5 |
6 |
|
|
Max. coresin tube |
6 |
6 |
12 |
12 |
|
|
Diameter of inner sheath |
8.3 |
8.8 |
9.1 |
9.7 |
|
|
Steel wire diameter and No. |
Ф1.0/28+34 |
Ф1.0/29+35 |
Ф1.0/30+36 |
Ф1.0/32+38 |
|
|
Cable diameter approx. |
16.7 |
17.2 |
17.5 |
18.1 |
|
|
Weightapprox. (kg/km) |
543 |
568 |
590 |
635 |
|
|
Tensile strength(N) |
Long term |
10000 |
|||
|
Short term |
20000 |
||||
|
Crush Resistance(N/100mm) |
Long term |
3000 |
|||
|
Short term |
5000 |
||||
|
Bending Radius(mm) |
Static |
≥15×cable diameter |
|||
|
Dynamic |
≥30×cable diameter |
||||
|
Operating Temperature(℃) |
-40 --- +60 |
||||
|
Application |
Underwater |
||||
Dimensions
|
Fiber Type |
Attenuation |
OFL Bandwidth |
Effective mode bandwidth @850nm |
Ethernet link length |
Minimum bending radius |
||||
|
@850 nm |
@1300 nm |
@1310 nm |
@1550 nm |
@850 nm |
@1300 nm |
||||
|
G.657A1 |
-- |
-- |
≤0.36dB/km |
≤0.22dB/km |
-- |
-- |
-- |
-- |
10mm |
|
G.657A2 |
-- |
-- |
≤0.36dB/km |
≤0.22dB/km |
-- |
-- |
-- |
-- |
7.5mm |
|
OM3 |
≤3.0dB/km |
≤1.0dB/km |
-- |
≥1500MHz·km |
≥500MHz·km |
≥2000MHZ.km |
≤300m |
30mm |
|
|
OM4 |
≤3.0dB/km |
≤1.0dB/km |
-- |
≥3500MHz·km |
≥500MHz·km |
≥4700MHZ.km |
≤550m |
30mm |
|
Fiber Type
B1.3 = G652D OM3 = MaxBand*300
B6A1 = G657A1 OM4 = MaxBand*550
B6A2 = G657A2 BI-OM3 = MaxBand*300
A1 = 50/125μm BI-OM4 = MaxBand*550
A1b = 62.5/125μm
