Outdoor optical fiber optic cable GYTA5333
GYTA333 fiber optic cable is the type of fiber optic cable used in shallow water as well as climbing lay. In other words, GYTA333 fiber optic cable is referred to as an underwater cable since is used underwater. In some cases, the GYTA333 fiber optic cable is laid in the water drainage and it has a fantastic feature that enables it to perform effectively in water environments.
Share:
● The cable Laying method: underground, underwater, direct buried, Duct.
● Suitable for River and lake crossing, coastal, rodent protection, etc.

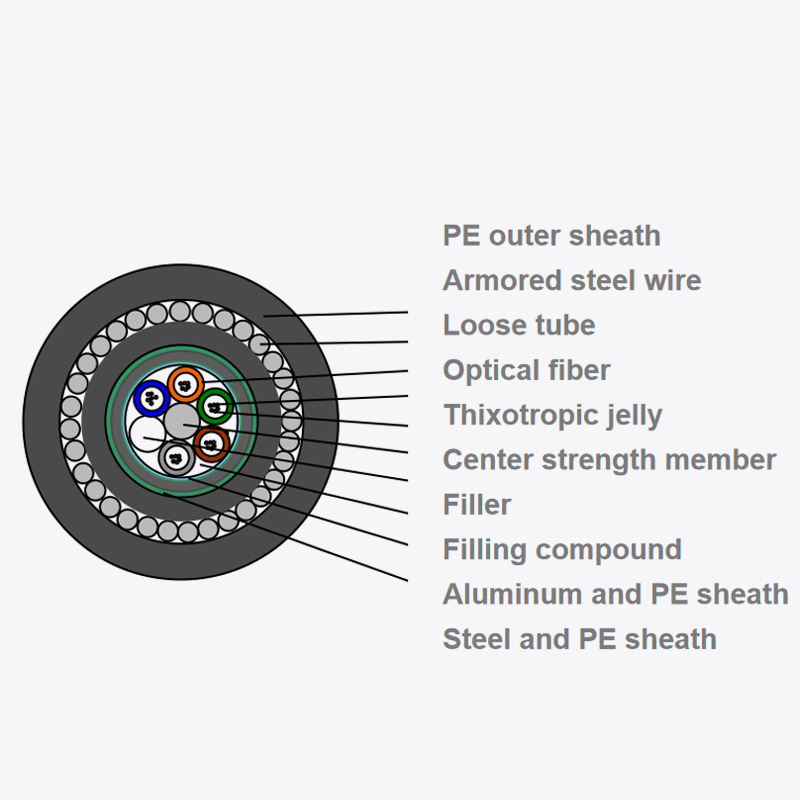

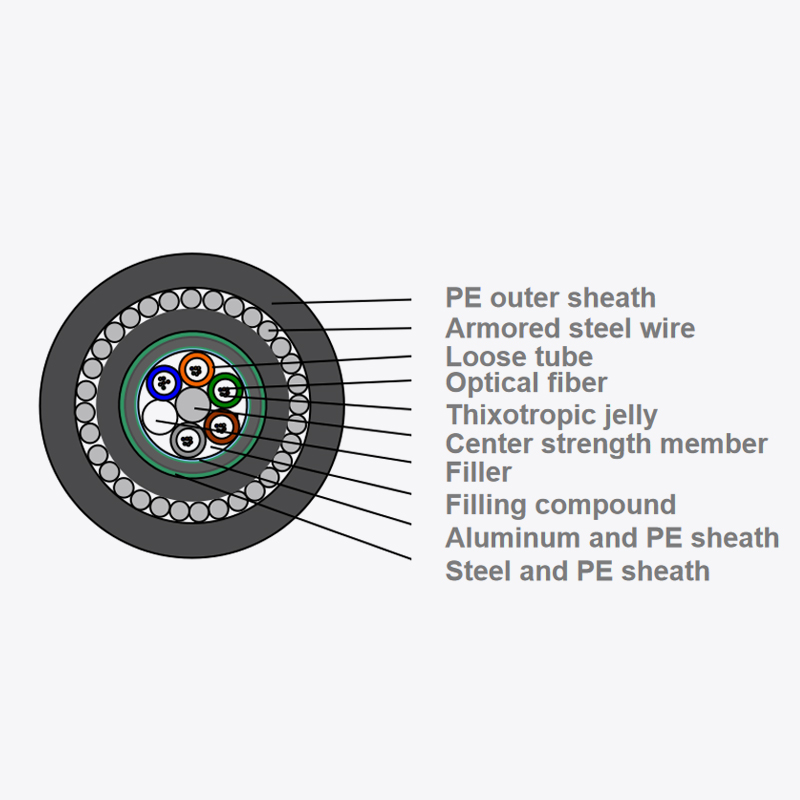

Characteristics
● High-quality optical fiber provides good transmission performance.
● Special filling gel-filled loose tubes provide perfect optical fiber protection.
● All section water blocking ensures the cable core's reliable performance of moisture-proof and water-block.
● Corrosion resistance phosphated steel wire with high Young's modulus as a central strength member.
● Longitudinally Armor with both sides coated with aluminum tape and stranded steel wires armoring meet.
Dimensions
|
Standard Reel Length: 2000m; Other lengths available on request. |
Dimensions
|
Fiber count |
2~36 |
38~72 |
|
|
Element number |
6 |
6 |
|
|
Max. coresin tube |
6 |
12 |
|
|
Diameter of inner sheath |
13.0 |
13.0 |
|
|
Steel wire diameter and No. |
Ф1.2/36 |
Ф1.2/36 |
|
|
Cable diameter approx. |
19.4 |
19.4 |
|
|
Weightapprox. (kg/km) |
582 |
582 |
|
|
Tensile strength(N) |
Long term |
10000 |
|
|
Short term |
20000 |
||
|
Crush Resistance(N/100mm) |
Long term |
3000 |
|
|
Short term |
5000 |
||
|
Bending Radius(mm) |
Static |
≥12.5×cable diameter |
|
|
Dynamic |
≥25×cable diameter |
||
|
Operating Temperature(℃) |
-40 -- +60 |
||
|
Application |
Directlyburial and Under water |
||
Dimensions
|
Fiber Type |
Attenuation |
OFL Bandwidth |
Effective mode bandwidth @850nm |
Ethernet link length |
Minimum bending radius |
||||
|
@850 nm |
@1300 nm |
@1310 nm |
@1550 nm |
@850 nm |
@1300 nm |
||||
|
G.657A1 |
-- |
-- |
≤0.36dB/km |
≤0.22dB/km |
-- |
-- |
-- |
-- |
10mm |
|
G.657A2 |
-- |
-- |
≤0.36dB/km |
≤0.22dB/km |
-- |
-- |
-- |
-- |
7.5mm |
|
OM3 |
≤3.0dB/km |
≤1.0dB/km |
-- |
≥1500MHz·km |
≥500MHz·km |
≥2000MHZ.km |
≤300m |
30mm |
|
|
OM4 |
≤3.0dB/km |
≤1.0dB/km |
-- |
≥3500MHz·km |
≥500MHz·km |
≥4700MHZ.km |
≤550m |
30mm |
|
Fiber Type
B1.3 = G652D OM3 = MaxBand*300
B6A1 = G657A1 OM4 = MaxBand*550
B6A2 = G657A2 BI-OM3 = MaxBand*300
A1 = 50/125μm BI-OM4 = MaxBand*550
A1b = 62.5/125μm
