Underwater fiber optic cable GYTA33

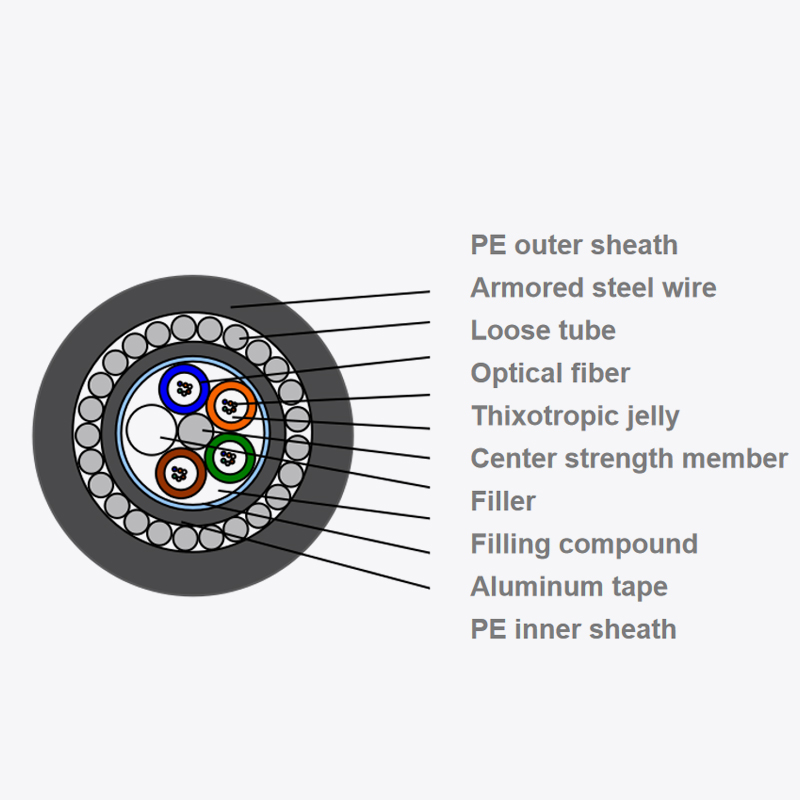

GYTA33 single-mode/multimode fibers are positioned in the loose tubes, which are made of high-modulus plastic materials, while the loose tubes are stranded together around the metallic central strength members into a compact and circular cable core. For certain high fiber count cables, the strength member would be covered with polyethylene(PE). The water-blocking materials are distributed into interstices of the cable core and the PSP is longitudinally applied around the cable core before a PE sheath is extruded over it.
Share:
● Frequent lightning area and anti-electric field: The subway, tunnel
● Long-distance communication: Local trunk network & User network
● Duct and direct buried application
● Harsh environment
Characteristics
● Low dispersion and attenuation.
● Proper design, precise control for fiber excess length and distinct stranding process render the cable.
● The armoring of steel wire and double-jacket structure make cable have excellent tensile strength and nice properties of water-proof and crush resistance.
Dimensions
|
Standard Reel Length: 2000m; Other lengths available on request. |
Dimensions
|
Fiber count |
2~30 |
32~36 |
38~60 |
62~72 |
2~36 |
38~72 |
|
|
Element number |
5 |
6 |
5 |
6 |
6 |
6 |
|
|
Max. coresin tube |
6 |
6 |
12 |
12 |
6 |
12 |
|
|
Diameter of inner sheath |
8.3 |
8.8 |
9.1 |
9.7 |
10.5 |
10.5 |
|
|
Steel wire diameter and No. |
Ф1.0/28 |
Ф1.0/29 |
Ф1.0/30 |
Ф1.0/32 |
Ф1.5/24 |
Ф1.5/24 |
|
|
Cable diameter approx. |
14.3 |
14.8 |
15.1 |
15.7 |
17.5 |
17.5 |
|
|
Weightapprox. (kg/km) |
315 |
328 |
340 |
360 |
520 |
520 |
|
|
Tensile strength(N) |
Long term |
4000 |
10000 |
||||
|
Short term |
10000 |
20000 |
|||||
|
Crush Resistance(N/100mm) |
Long term |
3000 |
|||||
|
Short term |
5000 |
||||||
|
Bending Radius(mm) |
Static |
≥12.5× cable diameter |
|||||
|
Dynamic |
≥25× cable diameter |
||||||
|
Operating Temperature(℃) |
-40 --- +60 |
||||||
|
Application |
Directlyburial and Under water |
||||||
Dimensions
|
Fiber Type |
Attenuation |
OFL Bandwidth |
Effective mode bandwidth @850nm |
Ethernet link length |
Minimum bending radius |
||||
|
@850 nm |
@1300 nm |
@1310 nm |
@1550 nm |
@850 nm |
@1300 nm |
||||
|
G.657A1 |
-- |
-- |
≤0.36dB/km |
≤0.22dB/km |
-- |
-- |
-- |
-- |
10mm |
|
G.657A2 |
-- |
-- |
≤0.36dB/km |
≤0.22dB/km |
-- |
-- |
-- |
-- |
7.5mm |
|
OM3 |
≤3.0dB/km |
≤1.0dB/km |
-- |
≥1500MHz·km |
≥500MHz·km |
≥2000MHZ.km |
≤300m |
30mm |
|
|
OM4 |
≤3.0dB/km |
≤1.0dB/km |
-- |
≥3500MHz·km |
≥500MHz·km |
≥4700MHZ.km |
≤550m |
30mm |
|
Fiber Type
B1.3 = G652D OM3 = MaxBand*300
B6A1 = G657A1 OM4 = MaxBand*550
B6A2 = G657A2 BI-OM3 = MaxBand*300
A1 = 50/125μm BI-OM4 = MaxBand*550
A1b = 62.5/125μm
