Duplex Round Armored Cable

PREV：Simplex Round Armored Cable Next：Multi-fiber Armored Cable

● Used in pigtails and patch cords.

● Used in optical connections in optical communication equipment rooms and optical distribution frames, optical appqratus and equipments.

Characteristics

● Good mechanical and environmental characteristics.

● Flame retardant characteristics meet the requirements of relevant standards.

● The mechanical characteristics meet the requirements of relevant standards.

● Soft, flexible, easy to splice.

● Meet various requirements of the market and clients.

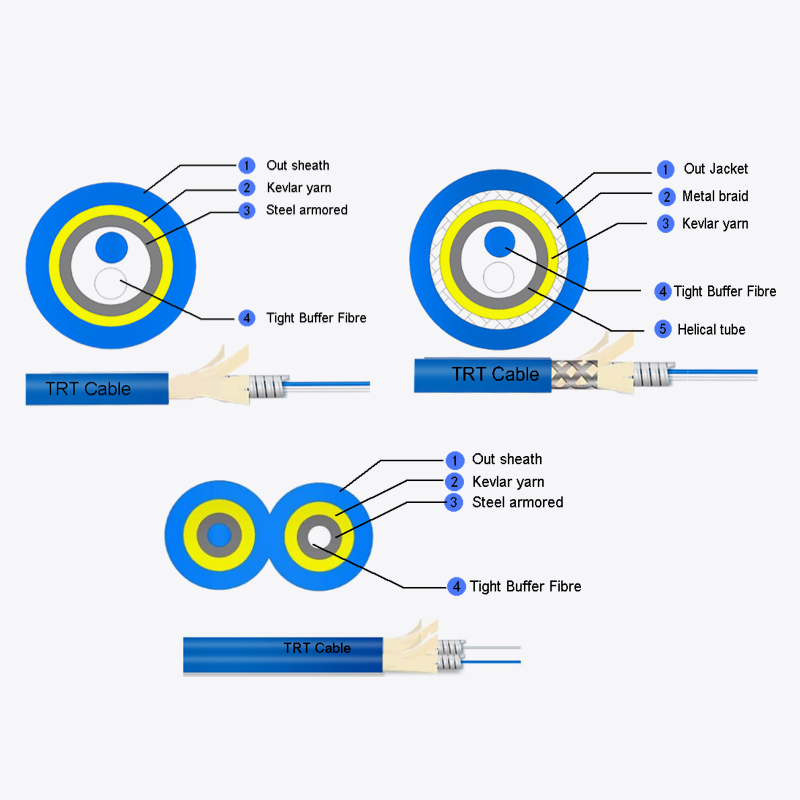

Dimensions

Note: The cable sheath material, color and printing information can be customized according to customer requirements.

Dimensions

Item	Single Mode	Multimode
Core/Mode Field Diameter(μm)	9±0.4μm@1310nm 10.4±0.8μm@1550nm	50±2.5μm	62.5±2.5μm
Cladding Diameter (μm)	125±1μm	125±1μm	125±1μm
Max Attenuation (dB/km)	0.4dB/km@1310nm 0.3dB/km@1550nm	3.5dB/km@850nm 1.5dB/km@1300nm	3.5dB/km@850nm 1.5dB/km@1300nm
Cable Diameter (mm)	2.85±0.10mm(2F)/3.2±0.010mm(1F)
Cable weight (kg/km)	38/20
Bending Radius (mm)	Dynamic 20OD Static 10OD
Allowable tension (N)	Long term 200 Short Term 400
Crush loading force (N/100mm)	Long Term 3000 Short Term 5000
