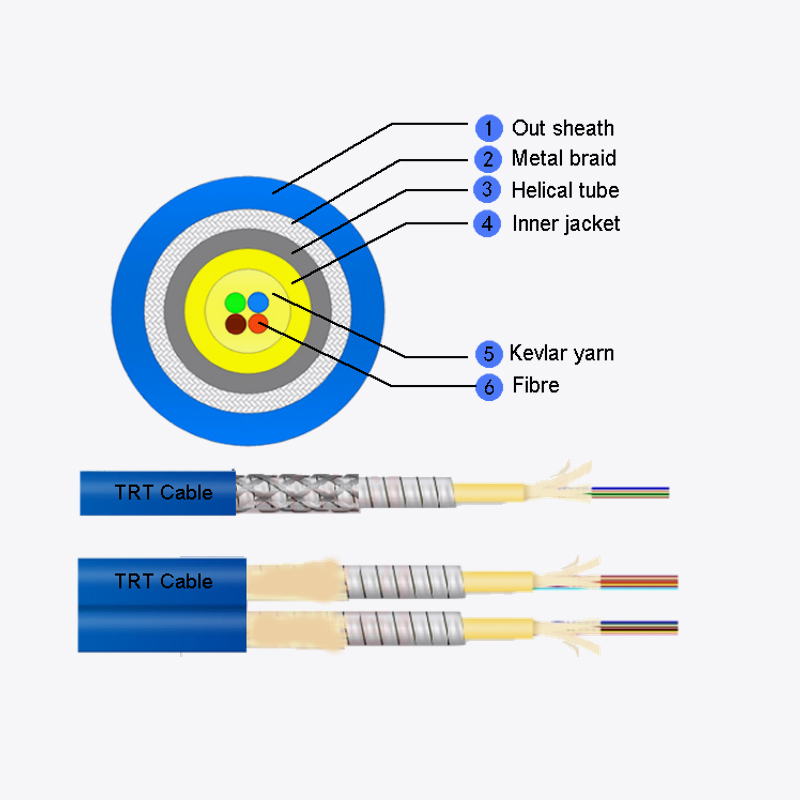

Multi-fiber Armored Cable

PREV：Duplex Round Armored Cable Next：1-12 Core Mini Armored Cable for MPO

● Used in pigtails and patch cords.

● Used in optical connections in optical communication equipment rooms and optical distribution frames, optical appqratus and equipments.

Characteristics

● Good mechanical and environmental characteristics.

● Flame retardant characteristics meet the requirements of relevant standards.

● The mechanical characteristics meet the requirements of relevant standards.

● Soft, flexible, easy to splice.

● Meet various requirements of the market and clients.

Dimensions

Note: The cable sheath material, color and printing information can be customized according to customer requirements.

Dimensions

Item	Single Mode		Multimode
Core/Mode Field Diameter(μm)	9±0.4μm@1310nm 10.4±0.8μm@1550nm		50±2.5μm			50±2.5μm
Cladding Diameter (μm)	125±1μm		125±1μm			125±1μm
Max Attenuation (dB/km)	0.4dB/km@1310nm 0.3dB/km@1550nm		3.5dB/km@850nm 1.5dB/km@1300nm			3.5dB/km@850nm 1.5dB/km@1300nm
Fiber count	4	6		8	12		16
Cable Diameter (mm)	6.4±0.3mm	6.4±0.3mm		7.4±0.3mm	7.4±0.3mm		8.9±0.3mm
Cable weight (kg/km)	65	65		75	75		75
Bending Radius (mm)	Dynamic 20OD Static 10OD
Allowable tension (N)	Long term 600 Short Term 800
Crush loading force (N/100mm)	Long Term 3000 Short Term 5000

Click to view

Question? Check out our answer.

How long will it take to get a reply after we send you an inquiry?

We will reply within 4 hours after receiving the inquiry on weekdays.
Are you a direct manufacturer or a trading company?

We are a direct manufacturer, producing and selling our own products. And we also have our own international trade department, engaged in related goods trade.
What products can you provide?

We mainly produce various types of communication optical cables and optical cable components as well as various communication tools.
What are the main application areas of your products?

Our products cover almost the entire application field of optical communication, including major operators, network companies, private networks and other communication industries.
Can you make customized products?

Yes, we mainly produce customized products. We develop and produce products according to the specifications or samples provided by customers.
