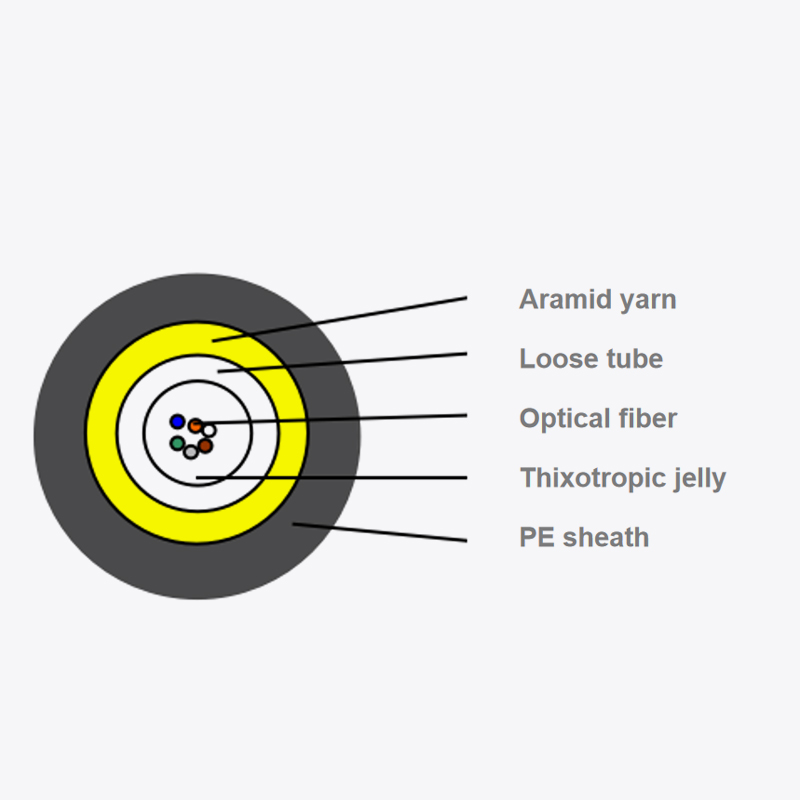

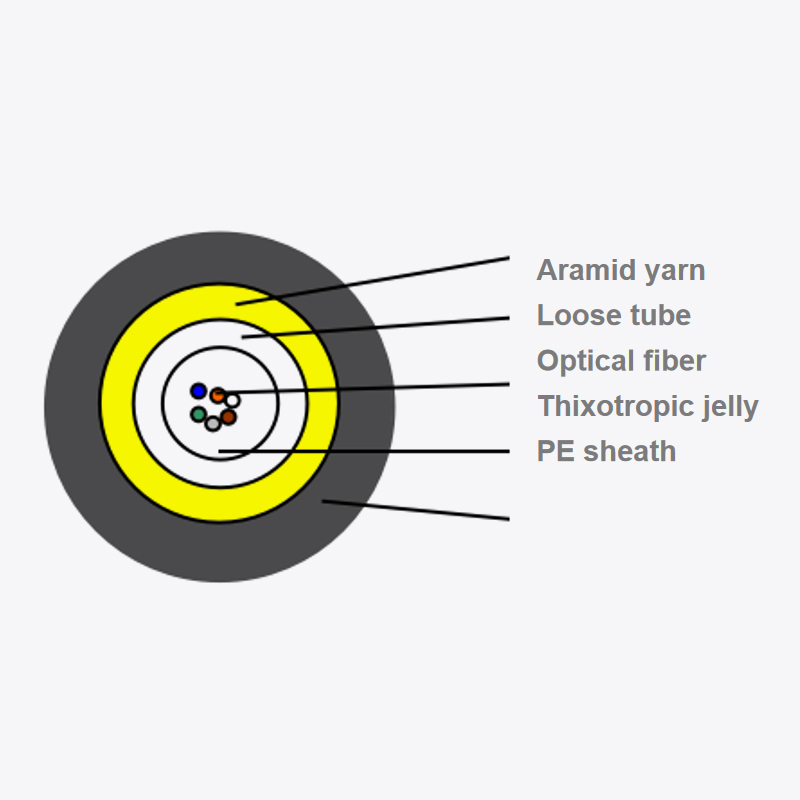

Conventional center tube micro cable
● Duct
● Perfect cable structure with high fiber density
● Accurate fiber length balance to ensure stable performance
● No gel in cable core for water blocking
● Sheath structure innovation to enhance blowing performance
● Greater blowing distance
Standard Reel Length: 2000m; Other lengths available on request. |
Fiber count |
1~12 |
|
Cable type |
All-Dielectric Nonmetaltype |
|
Cable diameterapprox. (mm) |
3.8 |
|
Weightapprox. (kg/km) |
12.0 |
|
Duct size |
Ф10/Ф8, Ф7.0/Ф5.5,Ф8/Ф6 |
|
Tensile strength(N) |
Long term |
0.15*G (G- 1 km cable weight) |
Short term |
0.5*G (G- 1 km cable weight) |
|
Crush Resistance(N/100mm) |
Long term |
150 |
Short term |
450 |
|
Bending Radius(mm) |
Dynamic |
≥20×Cable Diameter |
Static |
≥10×Cable Diameter |
|
Friction coefficient |
Dynamic |
0.15 |
Static |
0.25 |
|
Operating Temperature(℃) |
-40 --- +60 |
|
Minimum blowing length once time |
≥1000m within 30minutes |
|
Application |
Duct |
Fiber Type |
Attenuation |
OFL Bandwidth |
Effective mode bandwidth @850nm |
Ethernet link length |
Minimum bending radius |
||||
@850 nm |
@1300 nm |
@1310 nm |
@1550 nm |
@850 nm |
@1300 nm |
||||
G.657A1 |
-- |
-- |
≤0.36dB/km |
≤0.22dB/km |
-- |
-- |
-- |
-- |
10mm |
G.657A2 |
-- |
-- |
≤0.36dB/km |
≤0.22dB/km |
-- |
-- |
-- |
-- |
7.5mm |
OM3 |
≤3.0dB/km |
≤1.0dB/km |
-- |
≥1500MHz·km |
≥500MHz·km |
≥2000MHZ.km |
≤300m |
30mm |
|
OM4 |
≤3.0dB/km |
≤1.0dB/km |
-- |
≥3500MHz·km |
≥500MHz·km |
≥4700MHZ.km |
≤550m |
30mm |
Fiber Type
B1.3 = G652D OM3 = MaxBand*300
B6A1 = G657A1 OM4 = MaxBand*550
B6A2 = G657A2 BI-OM3 = MaxBand*300
A1 = 50/125μm BI-OM4 = MaxBand*550
A1b = 62.5/125μm
