Central Tube Optical Cable GYXTW

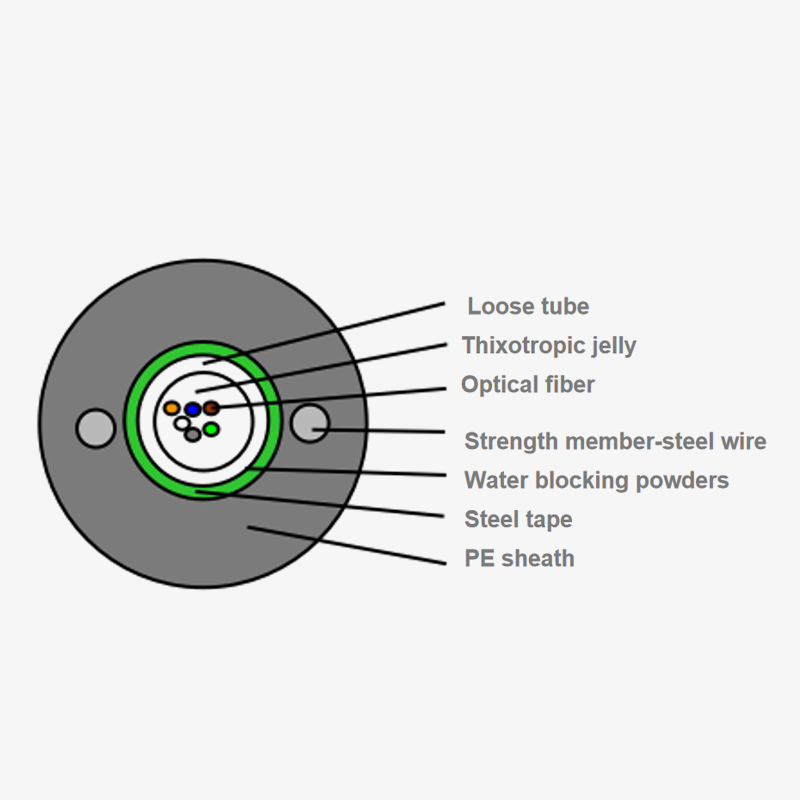

GYXTW cable is an outdoor use optical fiber cable suitable for duct and aerial applications. Both single mode type and multimode types are available. Fiber optic cable GYXTW, 2~12 fibers, jelly filled and fiber contained central loose tube, copolymer coated steel tape, two parallel steel wires 1.2mm, PE outer sheath.request.
Share:
● Duct / Aerial
Characteristics
● Choice of Fibre Type
● Colour code of Fibre
● High water resistance
● High crush resistance
● Choice Sheath Material
● Low attenuation and dispersion
● Good flexibility and bending performance
Dimensions
|
Standard Reel Length: 2000m; Other lengths available on request. |
Dimensions
|
Fiber count |
2~12 |
14~24 |
|
|
Tube diameter(mm) |
Ф2.5 |
Ф3.2 |
|
|
Steel wire diameter(mm) |
Ф1.0 |
Ф1.0 |
|
|
Cable diameter (mm) |
Ф7.6 |
Ф8.5 |
|
|
Weight (Kg/km） |
67 |
81 |
|
|
Tensile strength(N） |
Long term |
600 |
|
|
Short term |
1500 |
||
|
Crush resistance(N/100mm) |
Long term |
300 |
|
|
Short term |
1000 |
||
|
Bending radius(mm) |
Dynamic |
≥20× cable diameter |
|
|
Static |
≥10× cable diameter |
||
|
Operating temperature(℃) |
-40 --- +60 |
||
|
Application |
Aerial, duct |
||
Dimensions
|
Fiber Type |
Attenuation |
OFL Bandwidth |
Effective mode bandwidth @850nm |
Ethernet link length |
Minimum bending radius |
||||
|
@850 nm |
@1300 nm |
@1310 nm |
@1550 nm |
@850 nm |
@1300 nm |
||||
|
G.657A1 |
-- |
-- |
≤0.36dB/km |
≤0.22dB/km |
-- |
-- |
-- |
-- |
10mm |
|
G.657A2 |
-- |
-- |
≤0.36dB/km |
≤0.22dB/km |
-- |
-- |
-- |
-- |
7.5mm |
|
OM3 |
≤3.0dB/km |
≤1.0dB/km |
-- |
≥1500MHz·km |
≥500MHz·km |
≥2000MHZ.km |
≤300m |
30mm |
|
|
OM4 |
≤3.0dB/km |
≤1.0dB/km |
-- |
≥3500MHz·km |
≥500MHz·km |
≥4700MHZ.km |
≤550m |
30mm |
|
Fiber Type
B1.3 = G652D OM3 = MaxBand*300
B6A1 = G657A1 OM4 = MaxBand*550
B6A2 = G657A2 BI-OM3 = MaxBand*300
A1 = 50/125μm BI-OM4 = MaxBand*550
A1b = 62.5/125μm
