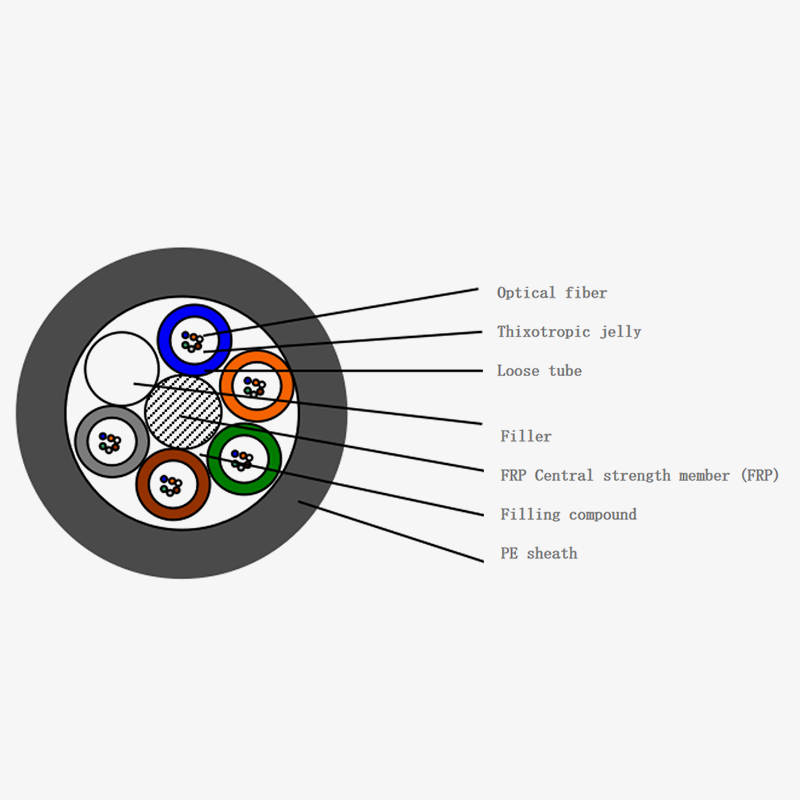

Layer Stranded Optical fiber optic cable GYFTY
GYFTY Single Jacket None Metallic optical fiber cables are designed to provide high fiber counts with the flexibility and versatility required for today's demanding installations, including duct and underground conduit.
Share:
● Interbuilding voice or data communication backbone.
● Installed in duct, underground conduit.
● Install in aerial.
Characteristics
● Aramid yarn as a strength member makes cable have excellent tensile strength
● High-integrated fiber ribbon design
● The outer jacket material has many advantages such as anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant, and harmless to the environment, etc.
Dimensions
|
Standard Reel Length: 2000m; Other lengths available on request. |
Dimensions
|
Fiber count |
2~48 |
50~84 |
86~96 |
98~108 |
110~120 |
122~132 |
134~144 |
|
|
FRPCSM/FRP(mm) |
--/3.0 |
--/3.0 |
--/3.6 |
4.2/3.6 |
4.8/3.6 |
5.6/4.0 |
6.3/4.0 |
|
|
Element number |
8 |
7 |
8 |
9 |
10 |
11 |
12 |
|
|
Max. coresin tube |
6 |
12 |
12 |
12 |
12 |
12 |
12 |
|
|
Cable diameter(mm) |
10.2 |
10.8 |
11.6 |
12.2 |
12.8 |
13.6 |
14.3 |
|
|
Weight(kg/km) |
92 |
103 |
120 |
132 |
144 |
164 |
179 |
|
|
Tensile strength(N) |
Long term |
600 |
||||||
|
Short term |
1500 |
|||||||
|
Crush Resistance(N/100mm) |
Long term |
300 |
||||||
|
Short term |
1000 |
|||||||
|
Bending Radius(mm) |
Dynamic |
≥20×Cable Diameter |
||||||
|
Static |
≥10×Cable Diameter |
|||||||
|
Operating Temperature(℃) |
-40 --+60 |
|||||||
|
Application |
Duct, Aerial |
|||||||
Dimensions
|
Fiber Type |
Attenuation |
OFL Bandwidth |
Effective mode bandwidth @850nm |
Ethernet link length |
Minimum bending radius |
||||
|
@850 nm |
@1300 nm |
@1310 nm |
@1550 nm |
@850 nm |
@1300 nm |
||||
|
G.657A1 |
-- |
-- |
≤0.36dB/km |
≤0.22dB/km |
-- |
-- |
-- |
-- |
10mm |
|
G.657A2 |
-- |
-- |
≤0.36dB/km |
≤0.22dB/km |
-- |
-- |
-- |
-- |
7.5mm |
|
OM3 |
≤3.0dB/km |
≤1.0dB/km |
-- |
≥1500MHz·km |
≥500MHz·km |
≥2000MHZ.km |
≤300m |
30mm |
|
|
OM4 |
≤3.0dB/km |
≤1.0dB/km |
-- |
≥3500MHz·km |
≥500MHz·km |
≥4700MHZ.km |
≤550m |
30mm |
|
Fiber Type
B1.3 = G652D OM3 = MaxBand*300
B6A1 = G657A1 OM4 = MaxBand*550
B6A2 = G657A2 BI-OM3 = MaxBand*300
A1 = 50/125μm BI-OM4 = MaxBand*550
A1b = 62.5/125μm
