Outdoor optical fiber optic cable GYDTA/GYDTS

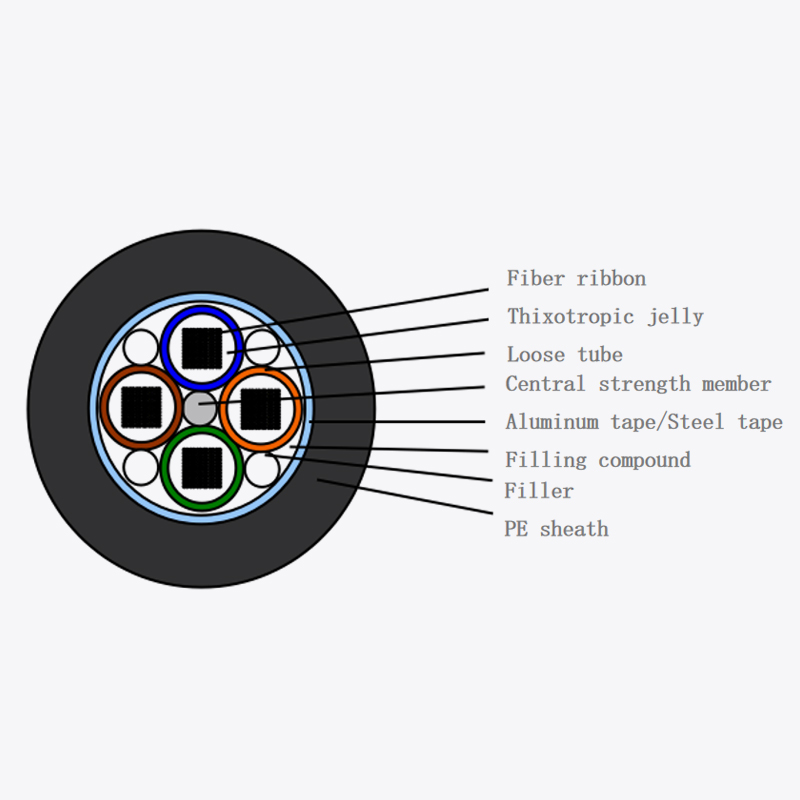

GYDTA/GYDTS uses steel as the central strength member ensures good tensile resistance, and improves the bending performance. It has moisture resistance ability: the loose tube is filled with grease to protect the fiber, APL tape prevents water ingress, and then the cable is completed with PE out sheath. It's suitable for aerial and duct applications. Because of the good moisture resistance, it can also be used in cable trenches. It has a loose tube structure with ribbon cable, which is surrounded by APL tape.

Characteristics

● Low attenuation and dispersion, special control of exceeded length ensure good transmission performance in varying environments.

● Optical fiber ribbons have accurate geometric dimensions.

● Loose tube has good flexibility.

● Easy to draw out, splice, and clean, low cost of installation.

Dimensions(mm)

Fiber count		48~60	72~192	216~288	312~360	384~432	456~576
Fiber number per ribbon		12	12	12	12	12	12
Element number		4+4	4+4	4+4	5	6	6
CSM/steel wire diameter(mm)		--/2.2	--/2.3	--/2.5	4.2/2.5	6.0/2.5	7.0/3.96 (Stranded steel)
GYDTA/GYDTS(mm) Cable diameter approx		16.9/17.6	17.6/18.3	18.4/19.1	20.1/21.0	21.9/22.8	25.2/25.8
GYDTA/GYDTS (kg/km)Weight approx		267/326	296/356	329/394	383/460	448/532	708/792
Tensile strength (N)	Long term	600
	Short term	1500~3000
Crush resistance(N/100mm)	Long term	300
	Short term	1000
Bending radius(mm)	Dynamic	≥20× cable diameter
	Static	≥10× cable diameter
Operating temperature(℃)		-40--- +60
Application		Aerial, duct

Dimensions(mm)

Fiber Type	Attenuation				OFL Bandwidth		Effective mode bandwidth @850nm	Ethernet link length	Minimum bending radius
Fiber Type	@850 nm	@1300 nm	@1310 nm	@1550 nm	@850 nm	@1300 nm	Effective mode bandwidth @850nm	Ethernet link length	Minimum bending radius
G.657A1	--	--	≤0.36dB/km	≤0.22dB/km	--	--	--	--	10mm
G.657A2	--	--	≤0.36dB/km	≤0.22dB/km	--	--	--	--	7.5mm
OM3	≤3.0dB/km	≤1.0dB/km	--		≥1500MHz·km	≥500MHz·km	≥2000MHZ.km	≤300m	30mm
OM4	≤3.0dB/km	≤1.0dB/km	--		≥3500MHz·km	≥500MHz·km	≥4700MHZ.km	≤550m	30mm

Fiber Type

B1.3 = G652D OM3 = MaxBand*300

B6A1 = G657A1 OM4 = MaxBand*550

B6A2 = G657A2 BI-OM3 = MaxBand*300

A1 = 50/125μm BI-OM4 = MaxBand*550

A1b = 62.5/125μm
