Outdoor optical fiber optic cable GYFTYC8S

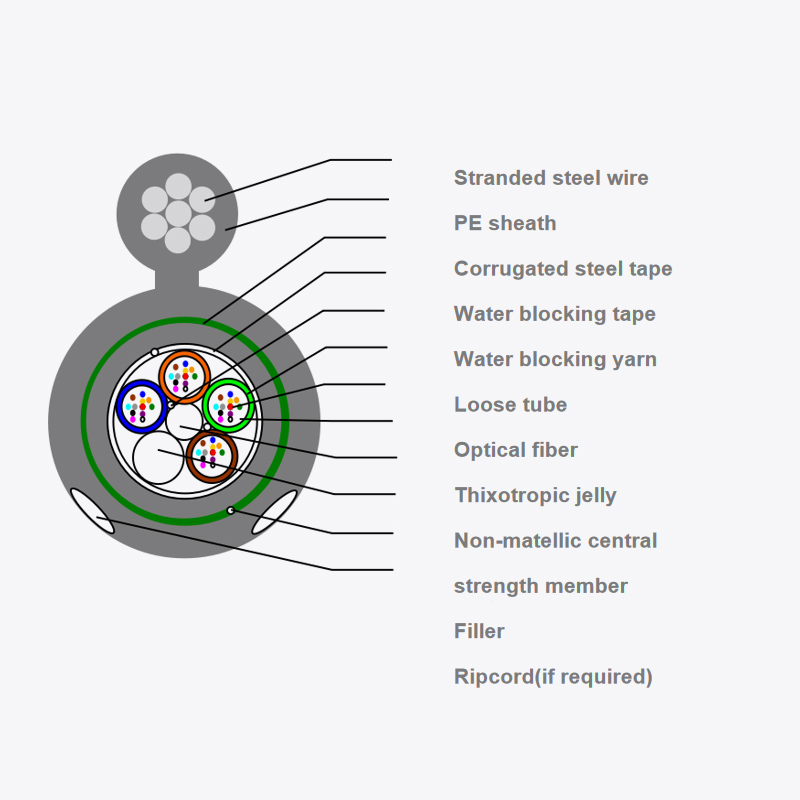

GYFTYC8SY cable uses Loose tube style, figure-8 optical fiber cable with metallic central strength member of steel wire/strand and moisture barrier inner sheath incorporating steel messenger wire suitable for overhead installation as pole-to-pole or pole-to-premises. Tubes contain optical single-mode or multimode fibers colour-coded as per color coding scheme.

Dimensions(mm)

Fiber count		2~30	32~60
Element number		5	5
Max. coresin tube		6	12
Cable diameter(mm)		12.5	13.2
Tensile strength (N)		(4KN~10KN) According to the demand of design
Crush Resistance(N/100mm)	Long term	1000
	Short term	4400
Bending Radius(mm)	Dynamic	≥25×Cable Diameter
	Static	≥12.5×Cable Diameter
Operating Temperature(℃)		-40-- +60
Application		Aerial

Dimensions(mm)

Fiber Type	Attenuation				OFL Bandwidth		Effective mode bandwidth @850nm	Ethernet link length	Minimum bending radius
Fiber Type	@850 nm	@1300 nm	@1310 nm	@1550 nm	@850 nm	@1300 nm	Effective mode bandwidth @850nm	Ethernet link length	Minimum bending radius
G.657A1	--	--	≤0.36dB/km	≤0.22dB/km	--	--	--	--	10mm
G.657A2	--	--	≤0.36dB/km	≤0.22dB/km	--	--	--	--	7.5mm
OM3	≤3.0dB/km	≤1.0dB/km	--		≥1500MHz·km	≥500MHz·km	≥2000MHZ.km	≤300m	30mm
OM4	≤3.0dB/km	≤1.0dB/km	--		≥3500MHz·km	≥500MHz·km	≥4700MHZ.km	≤550m	30mm

Fiber Type

B1.3 = G652D OM3 = MaxBand*300

B6A1 = G657A1 OM4 = MaxBand*550

B6A2 = G657A2 BI-OM3 = MaxBand*300

A1 = 50/125μm BI-OM4 = MaxBand*550

A1b = 62.5/125μm
