Outdoor optical fiber optic cable GYFTC8Y

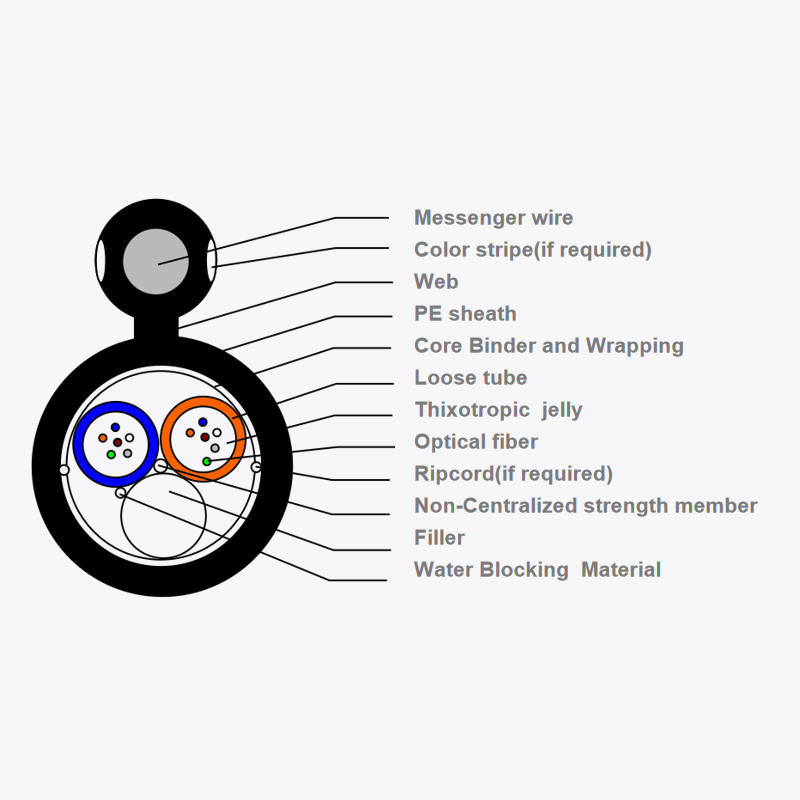

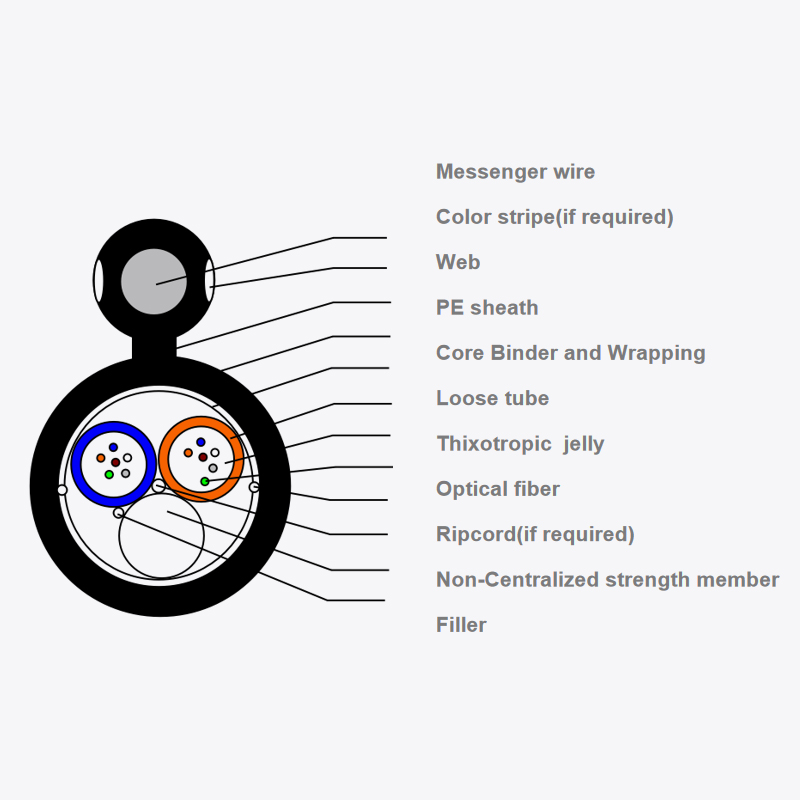

GYFTC8Y The structure of the GYFTC8Y optical cable is to sleeve the optical fiber into the PBT loose tube, and the loose tube is filled with a waterproof compound. The center of the cable core is a non-metallic reinforced core, and the loose tube (and filler rope) is twisted around the central reinforced core to form a compact and circular cable core. The cable core and the steel wire strands are integrated into a figure-8 polyethylene sheath.
Share:
● Aerial self-supporting
● Local network
● Long distance network communication.
Characteristics
● Good mechanical and temperature performance
● High-strength loose tube that is hydrolysis-resistant
● Special tube filling compound ensures the critical protection of fiber
● Crush resistance and flexibility
Dimensions
|
Standard Reel Length: 2000m; Other lengths available on request. |
Dimensions
|
Fiber count |
2~12 |
|
|
Max cores in tuber |
6 |
|
|
Element number |
3 |
|
|
(mm)Cable diameter |
8.0 |
|
|
(N)Tensile strength |
according to the demand for design |
|
|
（N/100mm）Crush resistance |
long term |
300 |
|
short term |
1000 |
|
|
(mm)Bending radius |
dynamic |
≥20×cable diameter |
|
static |
≥10×cable diameter |
|
|
（℃）Operating temperature |
-10--- +70 |
|
|
Application |
Aerial |
|
Dimensions
|
Fiber Type |
Attenuation |
OFL Bandwidth |
Effective mode bandwidth @850nm |
Ethernet link length |
Minimum bending radius |
||||
|
@850 nm |
@1300 nm |
@1310 nm |
@1550 nm |
@850 nm |
@1300 nm |
||||
|
G.657A1 |
-- |
-- |
≤0.36dB/km |
≤0.22dB/km |
-- |
-- |
-- |
-- |
10mm |
|
G.657A2 |
-- |
-- |
≤0.36dB/km |
≤0.22dB/km |
-- |
-- |
-- |
-- |
7.5mm |
|
OM3 |
≤3.0dB/km |
≤1.0dB/km |
-- |
≥1500MHz·km |
≥500MHz·km |
≥2000MHZ.km |
≤300m |
30mm |
|
|
OM4 |
≤3.0dB/km |
≤1.0dB/km |
-- |
≥3500MHz·km |
≥500MHz·km |
≥4700MHZ.km |
≤550m |
30mm |
|
Fiber Type
B1.3 = G652D OM3 = MaxBand*300
B6A1 = G657A1 OM4 = MaxBand*550
B6A2 = G657A2 BI-OM3 = MaxBand*300
A1 = 50/125μm BI-OM4 = MaxBand*550
A1b = 62.5/125μm
