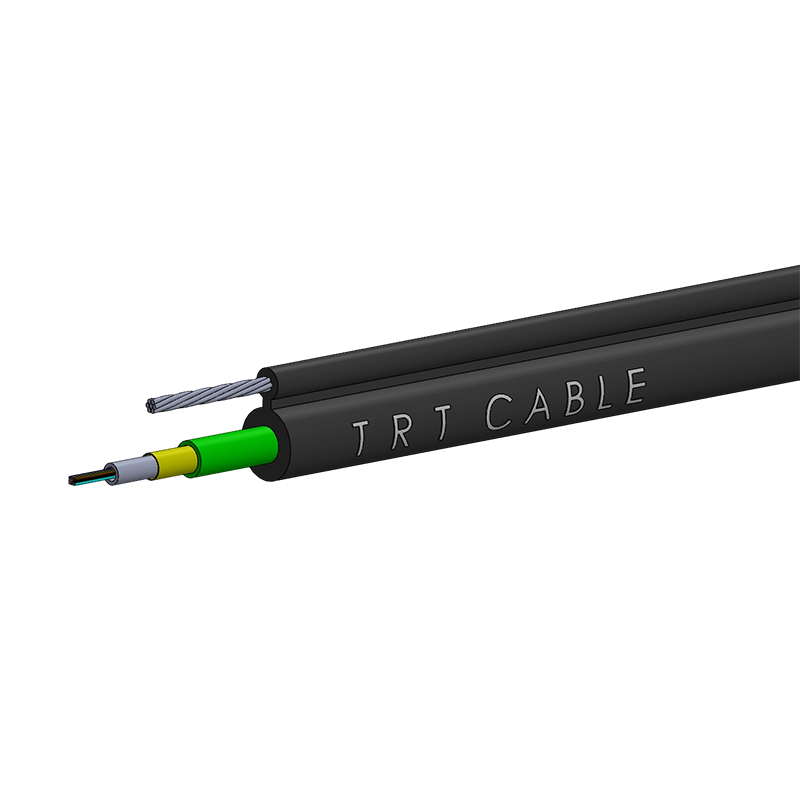

Outdoor optical fiber optic cable GYXTC8S

Outdoor optical fiber optic cable GYXTC8S

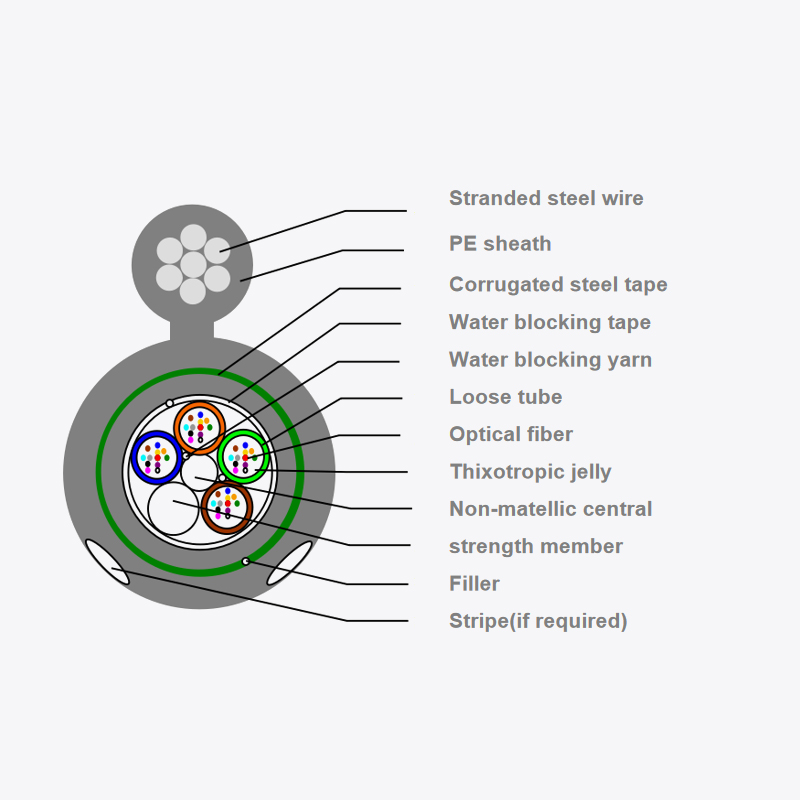

GYXTC8S cable use The optical fiber is 250µm, and the loose tube is made of high-modulus plastic, which is filled with a waterproof compound. The center of the cable core is a metal-reinforced core, tubes(and fillers) are stranded around the strength member into a compact and round cable core, which is filled with the waterproofing compound to protect it from water ingress. Plastic-coated aluminum tape (APL) is longitudinally wrapped and extruded into a polyethylene sheath to form a cable.

Share:

● Aerial

Characteristics

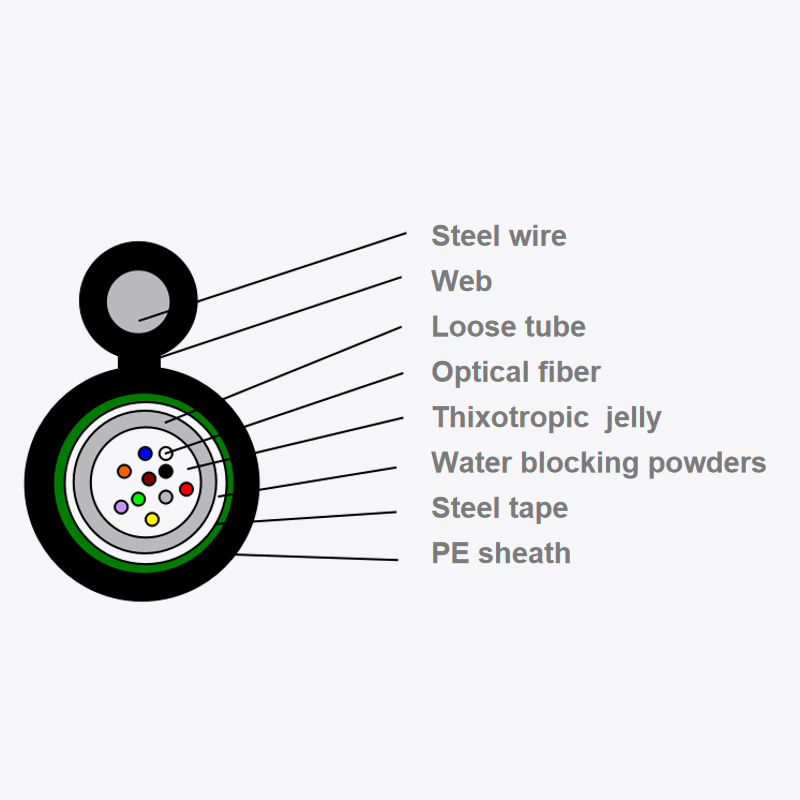

● Single PBT Loose tube, filling jelly, (around strength steel wire members), corrugated steel tape, PE outer sheath.

● Compact structure, light weight, steel tape armored excellent crush resistant performance.

● Excellent waterproof layer, good moisture resistance.

● Suitable for direct burial.

● Apply to Long distance communication systems, Local area network systems, and Subscriber network systems.

Dimensions(mm)

Standard Reel Length: 2000m; Other lengths available on request.

Dimensions(mm)

Fiber count

2~12

Max cores in tuber

12

Cable diameter (mm)

7.0

Weight approx (kg/km)

79

Tensile strength (N)

according to the demand of design

Crush resistance

(N/100mm)

long term

300

short term

1000

Bending radius

(mm)

dynamic

≥20×cable diameter

static

≥10×cable diameter

Operating temperature

(℃)

-40--- +60

Application

Aerial

Dimensions(mm)

Fiber Type

Attenuation

OFL Bandwidth

Effective mode bandwidth

@850nm

Ethernet link length

Minimum bending radius

@850 nm

@1300 nm

@1310 nm

@1550 nm

@850 nm

@1300 nm

G.657A1

--

--

≤0.36dB/km

≤0.22dB/km

--

--

--

--

10mm

G.657A2

--

--

≤0.36dB/km

≤0.22dB/km

--

--

--

--

7.5mm

OM3

≤3.0dB/km

≤1.0dB/km

--

≥1500MHz·km

≥500MHz·km

≥2000MHZ.km

≤300m

30mm

OM4

≤3.0dB/km

≤1.0dB/km

--

≥3500MHz·km

≥500MHz·km

≥4700MHZ.km

≤550m

30mm

Fiber Type

B1.3 = G652D  OM3 = MaxBand*300

B6A1 = G657A1  OM4 = MaxBand*550

B6A2 = G657A2  BI-OM3 = MaxBand*300

A1 = 50/125μm  BI-OM4 = MaxBand*550

A1b = 62.5/125μm
