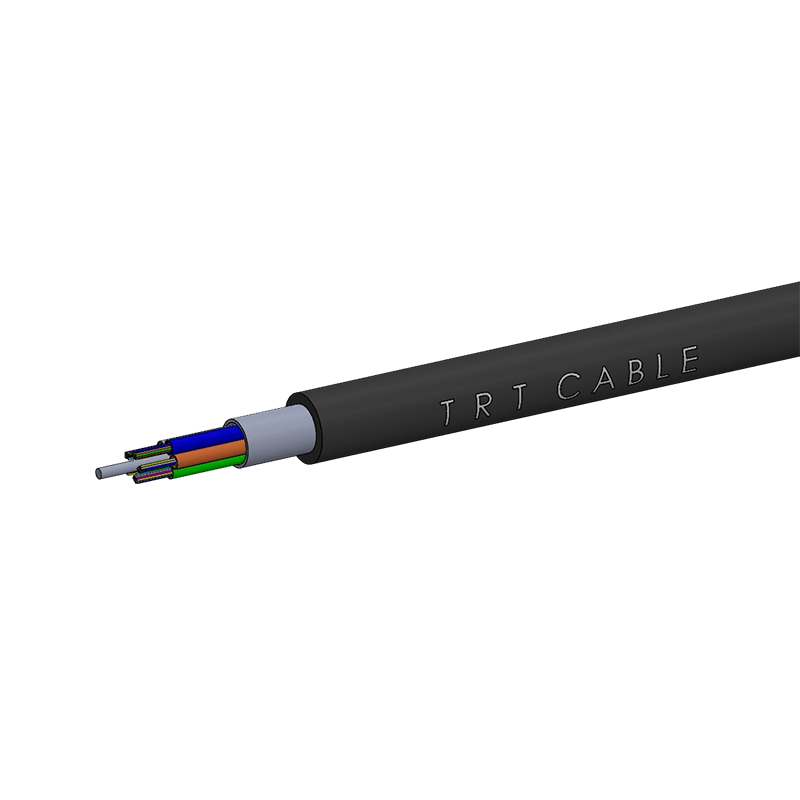

Stranded Loose Tube Non-armored fiber optic cable GYTA

The fibers, single-mode or multi-mode, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Aluminum tape, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The Aluminum tape is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.

Characteristics

● Good mechanical and temperature performance.

● High-strength loose tube that is hydrolysis resistant.

● Special tube filling compound ensures the critical protection of fiber.

● Crush resistance and flexibility.

● PE sheath protects cable from ultraviolet radiation.

● The following measures are taken to ensure the cable is watertight:

Steel wire is used as the central strength member

Loose tube filling compound and 99.99% cable core ling

Aluminum tape enhances moisture-proof

Dimensions(mm)

Cable Type (Increased by 2 fibers)	Fibre Count	Structure	Cable Weight Kg/Km (Ref)	Tensile Strength Long/Short-Term(N)	Crush Resistance Long/Short Term(N/10mm)	Bending Radius Static/Dynamic(mm)
GYTA-2~30F	2~6	1+5	76	600/1500	300/1000	10D/20D
GYTA-32~72F	32~36	1+6	85
GYTA-74~84F	74~84	1+7	136
GYTA-86~96F	86~96	1+8	136
GYTA-98~108F	98~108	1+9	163
GYTA-110~120F	110~120	1+10	163
GYTA-122~132F	122~132	1+11	190
GYTA-134~144F	134~144	1+12	190

Storage/Operating Temperature:-40℃ to +70℃

Dimensions(mm)

Fiber Type	Attenuation(+20℃）				Bandwidth		Numerical Aperture	Cable Cut-off Wavelength λcc
Fiber Type	@850 nm	@1300 nm	@1310 nm	@1550 nm	@850 nm	@1300 nm	Numerical Aperture	Cable Cut-off Wavelength λcc
G.652	--	--	≤0.36dB/km	≤0.22dB/km	--	--	--	≤1260 nm
G.655	--	--	≤0.40dB/km	≤0.23dB/km	--	--	--	≤1450 nm
50/125 µm	≤3.3dB/km	≤1.2dB/km	--		≥500MHz·km	≥500MHz·km	0.200±0.015NA	--
625/125 µm	≤3.5dB/km	≤1.2dB/km	--		≥200MHz·km	≥500MHz·km	0.275±0.015NA	--
