Unitube Non-metallic Non-armored fiber optic cable GYFXY

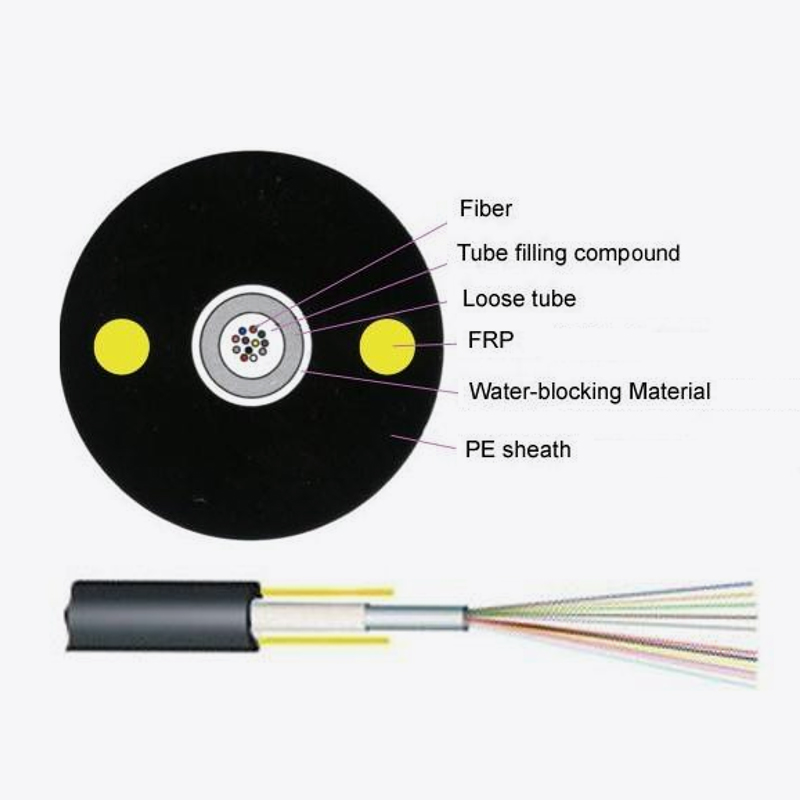

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel fiber reinforced plastic(FRP) are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.
Share:
Characteristics
● Good mechanical and temperature performance.
● High-strength loose tube that is hydrolysis resistant.
● Special tube filling compound ensures the critical protection of fiber.
● Small outer diameter and lightweight are easy to installation.
● Two parallel steel wires ensure tensile strength.
● PE sheath protects the cable from ultraviolet radiation.
Dimensions
|
Standard Reel Length: 2000m; Other lengths available on request. |
Dimensions
|
Item |
Contents |
80M SPAN Value | 120M SPAN Value | ||
|
2~12 |
13~24 |
2~12 |
13~24 |
||
|
Loose tube |
Number |
1 |
|||
|
Diameter (mm) |
2.3 |
2.5 |
2.3 |
2.5 |
|
|
FRP |
Number |
2 |
|||
|
Diameter (mm) |
1.8 |
2.0 |
2.0 |
2.25 |
|
|
Water Blocking Material |
Material |
Water Blocking Yarn or non |
|||
|
Sheath |
Material |
PE |
|||
|
Color |
Black |
||||
|
Thickness(mm) |
Nominal: 1.8 |
||||
|
Ripcord |
Number |
1 |
|||
|
Cable diameter(mm) Approx. |
7.0 |
7.5 |
7.2 |
7.7 |
|
|
Cable weight(kg/km) Approx. |
45 |
55 |
50 |
60 |
|
Dimensions
|
Fiber Type |
Attenuation(+20℃） |
Bandwidth |
Numerical Aperture |
Cable Cut-off Waverlength λcc |
||||
|
@850 nm |
@1300 nm |
@1310 nm |
@1550 nm |
@850 nm |
@1300 nm |
|||
|
G.652 |
-- |
-- |
≤0.36dB/km |
≤0.22dB/km |
-- |
-- |
-- |
≤1260 nm |
|
G.655 |
-- |
-- |
≤0.40dB/km |
≤0.23dB/km |
-- |
-- |
-- |
≤1450 nm |
|
50/125 µm |
≤3.3dB/km |
≤1.2dB/km |
-- |
≥500MHz·km |
≥500MHz·km |
0.200±0.015NA |
-- |
|
|
625/125 µm |
≤3.5dB/km |
≤1.2dB/km |
-- |
≥200MHz·km |
≥500MHz·km |
0.200±0.015NA |
-- |
|
